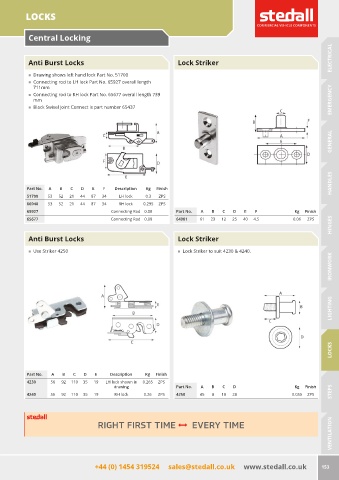

Page 155 - Stedall Parts Catalogue 14th Edition

LOCKS

Central Locking

ELECTRICAL

Anti Burst Locks Lock Striker

„ Drawing shows left hand lock Part No. 51700
„ Connecting rod to LH lock Part No. 65927 overall length
711mm
„ Connecting rod to RH lock Part No. 65677 overall length 739
mm EMERGENCY
„ Black Swivel Joint Connect is part number 65437

GENERAL

HANDLES

Part No. A B C D E F Description Kg Finish
51700 53 52 21 44 87 34 LH lock 0.3 ZPS
66940 53 52 21 44 87 34 RH lock 0.295 ZPS
65927 Connecting Rod 0.08 Part No. A B C D E F Kg Finish
HINGES
65677 Connecting Rod 0.08 64981 61 23 12 25 40 4.5 0.06 ZPS

Anti Burst Locks Lock Striker

„ Use Striker 4250 „ Lock Striker to suit 4230 & 4240.
IRONWORK

LIGHTING

LOCKS

Part No. A B C D E Description Kg Finish
4230 56 92 110 35 19 LH lock shown in 0.265 ZPS
drawing Part No. A B C D Kg Finish
4240 56 92 110 35 19 RH lock 0.26 ZPS 4250 45 8 18 28 0.055 ZPS STEPS

VENTILATION
