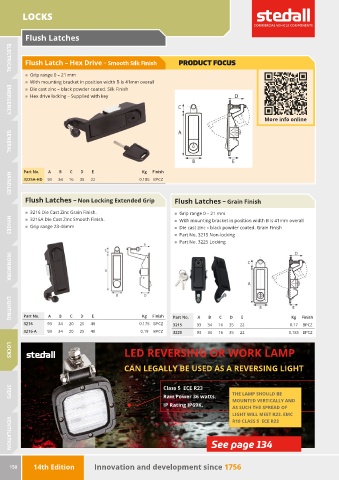

LOCKS

Flush Latches

Flush Latch – Hex Drive — Smooth Silk Finish PRODUCT FOCUS

ELECTRICAL
„ Grip range 0 – 21 mm
„ With mounting bracket in position width B is 41mm overall
„ Die cast zinc – black powder coated. Silk Finish
„ Hex drive locking – Supplied with key

EMERGENCY
More info online

GENERAL

Part No. A B C D E Kg Finish
3225A-HD 93 34 16 35 22 0.185 BPCZ

HANDLES
Flush Latches — Non Locking Extended Grip Flush Latches — Grain Finish

„ 3216 Die Cast Zinc Grain Finish. „ Grip range 0 – 21 mm
„ 3216A Die Cast Zinc Smooth Finish. „ With mounting bracket in position width B is 41mm overall
„ Grip range 23-46mm „ Die cast zinc – black powder coated. Grain Finish
„ Part No. 3215 Non-locking
HINGES
„ Part No. 3225 Locking

IRONWORK

Part No. A B C D E Kg Finish Part No. A B C D E Kg Finish
LIGHTING
3216 93 34 20 25 40 0.175 BPCZ 3215 93 34 16 35 22 0.17 BPCZ
3216-A 93 34 20 25 40 0.19 BPCZ 3225 93 34 16 35 22 0.185 BPCZ

LED REVERSING OR WORK LAMP
LOCKS
CAN LEGALLY BE USED AS A REVERSING LIGHT

Class 5 ECE R23
Raw Power 36 watts. THE LAMP SHOULD BE
MOUNTED VERTICALLY AND
STEPS
IP Rating IP69K. AS SUCH THE SPREAD OF
LIGHT WILL MEET R23. EMC
R10 CLASS 5 ECE R23

See page 134
