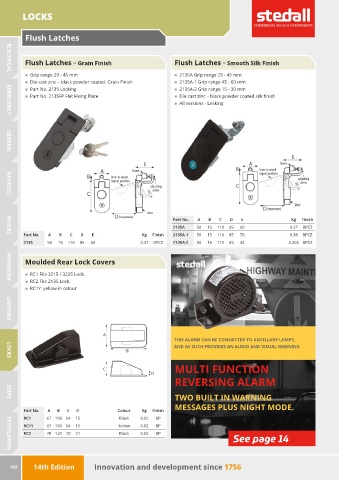

Page 162 - Stedall Parts Catalogue 14th Edition

LOCKS

Flush Latches

Flush Latches — Grain Finish Flush Latches — Smooth Silk Finish

ELECTRICAL
„ Grip range 29 - 45 mm „ 2135A Grip range 29 - 45 mm
„ Die cast zinc – black powder coated. Grain Finish „ 2135A-1 Grip range 45 - 60 mm
„ Part No. 2135 Locking „ 2135A-2 Grip range 15 - 30 mm
„ Part No. 2135FP Flat Fixing Plate „ Die cast zinc – black powder coated silk finish
„ All versions - Locking

EMERGENCY

GENERAL

HANDLES

Part No. A B C D E Kg Finish
2135A 50 15 110 85 60 0.37 BPCZ
Part No. A B C D E Kg Finish 2135A-1 50 15 110 85 70 0.38 BPCZ
HINGES
2135 50 15 110 85 60 0.37 BPCZ 2135A-2 50 15 110 85 44 0.365 BPCZ

Moulded Rear Lock Covers

„ RC1 Fits 3215 / 3225 Lock.
„ RC2 Fits 2135 Lock.
IRONWORK
„ RC1Y yellow in colour

LIGHTING

THIS ALARM CAN BE CONNECTED TO ANCILLARY LAMPS,
AND AS SUCH PROVIDES AN AUDIO AND VISUAL WARNING

LOCKS
MULTI FUNCTION

REVERSING ALARM

TWO BUILT IN WARNING
STEPS
MESSAGES PLUS NIGHT MODE.
Part No. A B C D Colour Kg Finish
RC1 67 106 54 15 Black 0.02 BP
RC1Y 67 106 54 15 Yellow 0.02 BP
RC2 78 121 70 21 Black 0.05 BP
See page 14

VENTILATION

160 14th Edition Innovation and development since 1756
