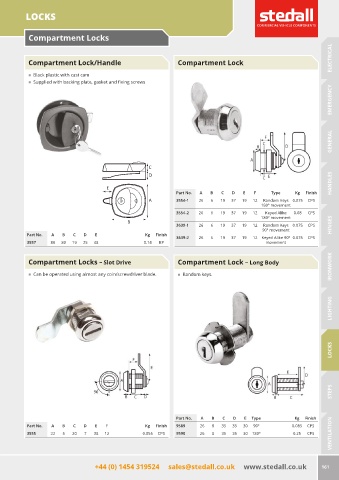

Page 163 - Stedall Parts Catalogue 14th Edition

LOCKS

Compartment Locks

ELECTRICAL

Compartment Lock/Handle Compartment Lock

„ Black plastic with cast cam
„ Supplied with backing plate, gasket and fixing screws
EMERGENCY

GENERAL

C
D

E HANDLES
Part No. A B C D E F Type Kg Finish
A 3554-1 26 6 19 37 19 12 Random Keys 0.075 CPS
180º movement
3554-2 26 6 19 37 19 12 Keyed Alike 0.08 CPS
180º movement
B
3639-1 26 6 19 37 19 12 Random Keys 0.075 CPS HINGES
90º movement
Part No. A B C D E Kg Finish
3639-2 26 6 19 37 19 12 Keyed Alike 90º 0.075 CPS
3557 80 80 19 25 48 0.14 BP movement
IRONWORK
Compartment Locks — Slot Drive Compartment Lock — Long Body

„ Can be operated using almost any coin/screwdriver blade. „ Random keys.

LIGHTING

LOCKS

STEPS

Part No. A B C D E Type Kg Finish
VENTILATION
Part No. A B C D E F Kg Finish 9589 26 8 35 35 30 90º 0.085 CPS
3555 22 5 20 7 38 12 0.055 CPS 9590 26 8 35 35 30 180º 0.25 CPS

+44 (0) 1454 319524 sales@stedall.co.uk www.stedall.co.uk 161
