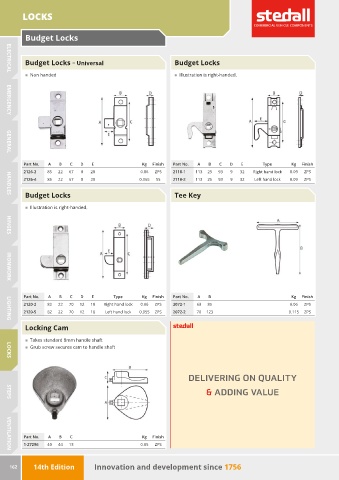

Page 164 - Stedall Parts Catalogue 14th Edition

LOCKS

Budget Locks

Budget Locks — Universal Budget Locks

ELECTRICAL
„ Non handed „ Illustration is right-handed.

EMERGENCY

GENERAL
Part No. A B C D E Kg Finish Part No. A B C D E Type Kg Finish
2126-2 85 22 67 8 20 0.06 ZPS 2118-1 113 25 93 9 32 Right hand lock 0.09 ZPS
2126-4 85 22 67 8 20 0.065 SS 2118-2 113 25 93 9 32 Left hand lock 0.09 ZPS

Budget Locks Tee Key
HANDLES
„ Illustration is right-handed.

HINGES

IRONWORK
Part No. A B C D E Type Kg Finish Part No. A B Kg Finish
2120-2 82 22 70 12 18 Right hand lock 0.06 ZPS 2072-1 63 85 0.06 ZPS
2120-5 82 22 70 12 18 Left hand lock 0.055 ZPS 2072-2 70 123 0.115 ZPS
LIGHTING
Locking Cam

„ Takes standard 8mm handle shaft
„ Grub screw secures cam to handle shaft
LOCKS

DELIVERING ON QUALITY

& ADDING VALUE
STEPS

Part No. A B C Kg Finish
1-27296 40 44 13 0.05 ZPS
