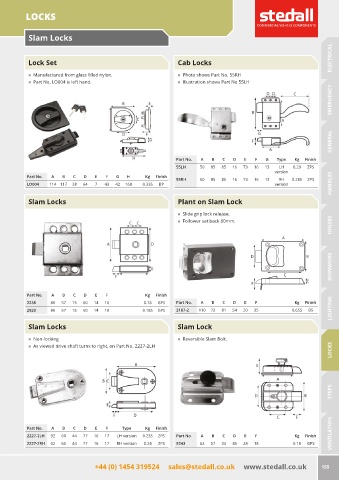

Page 157 - Stedall Parts Catalogue 14th Edition

LOCKS

Slam Locks

ELECTRICAL

Lock Set Cab Locks

„ Manufactured from glass filled nylon. „ Photo shows Part No. 55RH
„ Part No. LO004 is left hand. „ Illustration shows Part No 55LH
EMERGENCY

GENERAL

Part No. A B C D E F G Type Kg Finish
55LH 50 85 85 16 73 16 13 LH 0.29 ZPS
version
Part No. A B C D E F G H Kg Finish
55RH 50 85 85 16 73 16 13 RH 0.285 ZPS
LO004 114 117 38 64 7 43 42 168 0.335 BP version HANDLES

Slam Locks Plant on Slam Lock

„ Slide grip lock release.
HINGES
„ Follower set back 60mm.

A

IRONWORK
D B

C
E
F
Part No. A B C D E F Kg Finish
LIGHTING
2238 80 57 15 60 14 10 0.18 GPS Part No. A B C D E F Kg Finish
2920 80 57 15 60 14 18 0.185 GPS 2187-2 110 72 81 54 20 35 0.655 BS

Slam Locks Slam Lock

„ Non-locking „ Reversible Slam Bolt.
LOCKS
„ As viewed drive shaft turns to right, on Part No. 2227-2LH

STEPS

VENTILATION
Part No. A B C D E F Type Kg Finish
2227-2LH 92 60 44 77 16 17 LH version 0.235 ZPS Part No. A B C D E F Kg Finish
2227-2RH 92 60 44 77 16 17 RH version 0.24 ZPS 9243 62 57 34 45 28 18 0.18 GPS

+44 (0) 1454 319524 sales@stedall.co.uk www.stedall.co.uk 155
