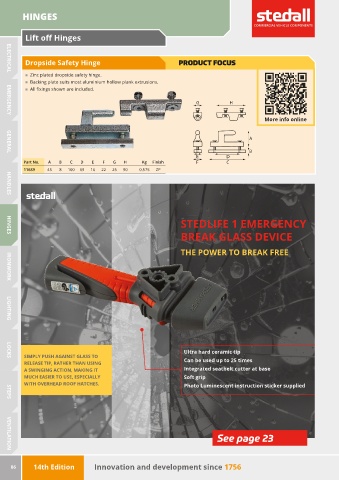

Page 88 - Stedall Parts Catalogue 14th Edition

HINGES

Lift off Hinges

Dropside Safety Hinge PRODUCT FOCUS

ELECTRICAL
„ Zinc plated dropside safety hinge.
„ Backing plate suits most aluminium hollow plank extrusions.
„ All fixings shown are included.

G H

EMERGENCY
More info online

A
B
GENERAL
E D
Part No. A B C D E F G H Kg Finish F C
11689 45 8 100 69 16 22 25 90 0.575 ZP

HANDLES

STEDLIFE 1 EMERGENCY

BREAK GLASS DEVICE
HINGES

THE POWER TO BREAK FREE

IRONWORK

LIGHTING

Ultra hard ceramic tip
SIMPLY PUSH AGAINST GLASS TO
LOCKS
RELEASE TIP, RATHER THAN USING Can be used up to 25 times
A SWINGING ACTION, MAKING IT Integrated seatbelt cutter at base
MUCH EASIER TO USE, ESPECIALLY Soft grip
WITH OVERHEAD ROOF HATCHES. Photo Luminescent instruction sticker supplied

STEPS

See page 23

VENTILATION

86 14th Edition Innovation and development since 1756
