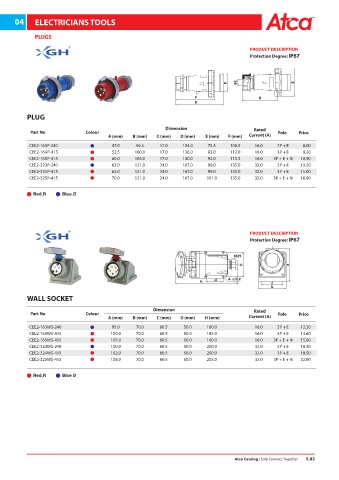

Page 83 - ATCA CATALOG 2019

04 ELECTRICIANS TOOLS

PLUGS
® PRODUCT DESCRIPTION
Protection Degree: IP67

C
E E
F B
D

PLUG

Dimension Rated
Part No Colour Pole Price
A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Current (A)
CEE2-163P-240 47.0 96.5 17.0 133.0 75.5 108.5 16.0 2P + E 8.00
CEE2-164P-415 53.5 100.0 17.0 136.0 83.0 112.0 16.0 3P + E 9.20
CEE2-165P-415 60.0 103.0 17.0 140.0 92.0 115.5 16.0 3P + E + N 10.90
CEE2-323P-240 63.0 121.0 24.0 167.0 99.0 135.0 32.0 2P + E 13.20
CEE2-324P-415 63.0 121.0 24.0 167.0 99.0 135.0 32.0 3P + E 15.00
CEE2-325P-415 70.0 121.0 24.0 167.0 101.0 135.0 32.0 3P + E + N 16.90

® PRODUCT DESCRIPTION
Protection Degree: IP67

M25
b a

h d 4- 5.2 c
b

WALL SOCKET
Dimension Rated
Part No Colour Pole Price
A (mm) B (mm) C (mm) D (mm) H (mm) Current (A)
CEE2-163WS-240 95.0 70.0 60.5 50.0 180.0 16.0 2P + E 12.30
CEE2-164WS-415 100.0 70.0 60.5 50.0 185.0 16.0 3P + E 13.60
CEE2-165WS-415 105.0 70.0 60.5 50.0 190.0 16.0 3P + E + N 15.80
CEE2-323WS-240 100.0 70.0 60.5 50.0 200.0 32.0 2P + E 18.30
CEE2-324WS-415 102.0 70.0 60.5 50.0 200.0 32.0 3P + E 19.50
CEE2-325WS-415 108.0 70.0 60.5 50.0 205.0 32.0 3P + E + N 22.00

Atca Catalog | Safe Connect Together 5.02
