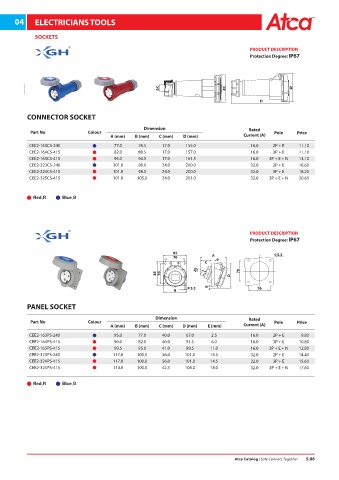

Page 87 - ATCA CATALOG 2019

04 ELECTRICIANS TOOLS

SOCKETS
® PRODUCT DESCRIPTION
Protection Degree: IP67

C C W

D

CONNECTOR SOCKET

Dimension Rated
Part No Colour Pole Price
A (mm) B (mm) C (mm) D (mm) Current (A)
CEE2-163CS-240 77.0 78.5 17.0 155.0 16.0 2P + E 11.10
CEE2-164CS-415 82.0 88.5 17.0 157.0 16.0 3P + E 11.10
CEE2-165CS-415 95.0 96.5 17.0 161.5 16.0 3P + E + N 13.10
CEE2-323CS-240 101.0 98.0 24.0 200.0 32.0 2P + E 16.60
CEE2-324CS-415 101.0 98.0 24.0 200.0 32.0 3P + E 18.20
CEE2-325CS-415 101.0 105.0 24.0 201.0 32.0 3P + E + N 20.60

® PRODUCT DESCRIPTION
Protection Degree: IP67

85 5.5
70 A
C 9
20 70
85 70
D
5.3 E 70
B
PANEL SOCKET

Dimension Rated
Part No Colour Pole Price
A (mm) B (mm) C (mm) D (mm) E (mm) Current (A)
CEE2-163PS-240 95.0 77.0 40.0 67.0 2.5 16.0 2P + E 9.80
CEE2-164PS-415 96.0 82.0 40.0 91.5 6.0 16.0 3P + E 10.80
CEE2-165PS-415 99.5 95.0 41.0 99.5 11.0 16.0 3P + E + N 12.80
CEE2-323PS-240 117.0 100.0 56.0 101.0 14.5 32.0 2P + E 14.40
CEE2-324PS-415 117.0 100.0 56.0 101.0 14.5 32.0 3P + E 15.60
CEE2-325PS-415 114.0 100.0 42.5 108.0 18.0 32.0 3P + E + N 17.60

Atca Catalog | Safe Connect Together 5.06
