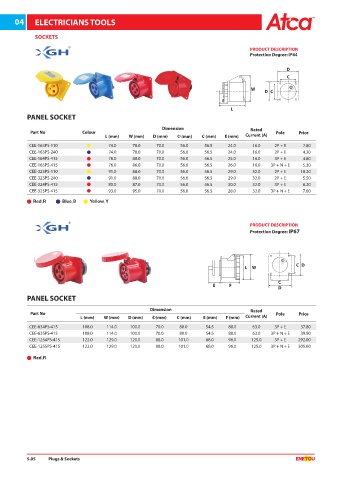

Page 86 - ATCA CATALOG 2019

04 ELECTRICIANS TOOLS

SOCKETS
® PRODUCT DESCRIPTION
Protection Degree: IP44

D
C

W
D C
E
L
PANEL SOCKET

Dimension Rated
Part No Colour Pole Price
L (mm) W (mm) D (mm) (mm) C (mm) E (mm) Current (A)
CEE-163PS-110 74.0 70.0 70.0 56.0 56.5 24.0 16.0 2P + E 7.80
CEE-163PS-240 74.0 70.0 70.0 56.0 56.5 24.0 16.0 2P + E 4.20
CEE-164PS-415 76.0 80.0 70.0 56.0 56.5 25.0 16.0 3P + E 4.80
CEE-165PS-415 76.0 86.0 70.0 56.0 56.5 26.0 16.0 3P + N + E 5.30
CEE-323PS-110 91.0 88.0 70.0 56.0 56.5 29.0 32.0 2P + E 10.20
CEE-323PS-240 91.0 88.0 70.0 56.0 56.5 29.0 32.0 2P + E 5.50
CEE-324PS-415 80.0 87.0 70.0 56.0 56.5 30.0 32.0 3P + E 6.20
CEE-325PS-415 93.0 95.0 70.0 56.0 56.5 28.0 32.0 3P + N + E 7.00

® PRODUCT DESCRIPTION
Protection Degree: IP67

C D
L W
C
E F
D
PANEL SOCKET

Dimension Rated
Part No Pole Price
L (mm) W (mm) D (mm) (mm) C (mm) E (mm) F (mm) Current (A)
CEE-634PS-415 108.0 114.0 100.0 70.0 80.0 54.5 88.0 63.0 3P + E 37.80
CEE-635PS-415 108.0 114.0 100.0 70.0 80.0 54.5 88.0 63.0 3P + N + E 39.90
CEE-1254PS-415 122.0 129.0 120.0 88.0 101.0 68.0 96.0 125.0 3P + E 292.00
CEE-1255PS-415 122.0 129.0 120.0 88.0 101.0 68.0 96.0 125.0 3P + N + E 305.00

5.05 Plugs & Sockets
