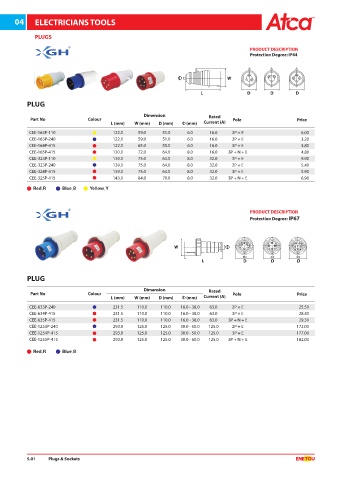

Page 82 - ATCA CATALOG 2019
P. 82
04 ELECTRICIANS TOOLS
PLUGS
® PRODUCT DESCRIPTION
Protection Degree: IP44
W
L D D D
PLUG
Dimension Rated
Part No Colour Pole Price
L (mm) W (mm) D (mm) (mm) Current (A)
CEE-163P-110 122.0 59.0 51.0 6.0 16.0 2P + E 6.00
CEE-163P-240 122.0 59.0 51.0 6.0 16.0 2P + E 3.20
CEE-164P-415 122.0 65.0 55.0 6.0 16.0 3P + E 3.80
CEE-165P-415 130.0 72.0 64.0 8.0 16.0 3P + N + E 4.80
CEE-323P-110 139.0 75.0 64.0 8.0 32.0 2P + E 9.90
CEE-323P-240 139.0 75.0 64.0 8.0 32.0 2P + E 5.40
CEE-324P-415 139.0 75.0 64.0 8.0 32.0 3P + E 5.90
CEE-325P-415 143.0 84.0 70.0 8.0 32.0 3P + N + E 6.90
® PRODUCT DESCRIPTION
Protection Degree: IP67
W
L D D D
PLUG
Dimension Rated
Part No Colour Pole Price
L (mm) W (mm) D (mm) (mm) Current (A)
CEE-633P-240 231.5 110.0 110.0 16.0 - 38.0 63.0 2P + E 25.50
CEE-634P-415 231.5 110.0 110.0 16.0 - 38.0 63.0 3P + E 28.40
CEE-635P-415 231.5 110.0 110.0 16.0 - 38.0 63.0 3P + N + E 29.30
CEE-1253P-240 293.0 125.0 125.0 30.0 - 50.0 125.0 2P + E 172.00
CEE-1254P-415 293.0 125.0 125.0 30.0 - 50.0 125.0 3P + E 177.00
CEE-1255P-415 293.0 125.0 125.0 30.0 - 60.0 125.0 3P + N + E 182.00
5.01 Plugs & Sockets
