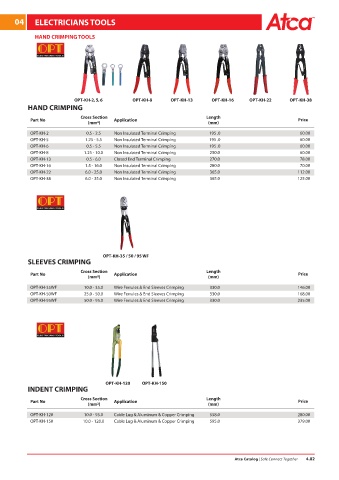

Page 77 - ATCA CATALOG 2019

04 ELECTRICIANS TOOLS

HAND CRIMPING TOOLS

OPT-KH-2, 5, 6 OPT-KH-8 OPT-KH-13 OPT-KH-16 OPT-KH-22 OPT-KH-38
HAND CRIMPING
Cross Section Length
Part No Application Price
(mm²) (mm)
OPT-KH-2 0.5 - 2.5 Non Insulated Terminal Crimping 195 .0 60.00
OPT-KH-5 1.25 - 5.5 Non Insulated Terminal Crimping 195 .0 60.00
OPT-KH-6 0.5 - 5.5 Non Insulated Terminal Crimping 195 .0 60.00
OPT-KH-8 1.25 - 10.0 Non Insulated Terminal Crimping 250.0 60.00
OPT-KH-13 0.5 - 6.0 Closed End Terminal Crimping 270.0 78.00
OPT-KH-16 1.5 - 16.0 Non Insulated Terminal Crimping 280.0 70.00
OPT-KH-22 6.0 - 25.0 Non Insulated Terminal Crimping 365.0 112.00
OPT-KH-38 6.0 - 35.0 Non Insulated Terminal Crimping 365.0 125.00

OPT-KH-35 / 50 / 95 WF
SLEEVES CRIMPING
Cross Section Length
Part No Application Price
(mm²) (mm)
OPT-KH-35WF 10.0 - 35.0 Wire Ferrules & End Sleeves Crimping 330.0 146.00
OPT-KH-50WF 25.0 - 50.0 Wire Ferrules & End Sleeves Crimping 330.0 168.00
OPT-KH-95WF 50.0 - 95.0 Wire Ferrules & End Sleeves Crimping 330.0 235.00

OPT-KH-120 OPT-KH-150
INDENT CRIMPING
Cross Section Length
Part No Application Price
(mm²) (mm)
OPT-KH-120 10.0 - 95.0 Cable Lug & Aluminum & Copper Crimping 558.0 280.00
OPT-KH-150 10.0 - 120.0 Cable Lug & Aluminum & Copper Crimping 595.0 379.00
