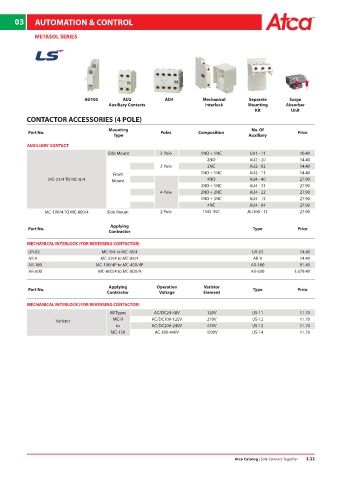

Page 75 - ATCA CATALOG 2019

03 AUTOMATION & CONTROL

METASOL SERIES

AU100 AU2 AU4 Mechanical Separate Surge
Auxiliary Contacts Interlock Mounting Absorber
Kit Unit
CONTACTOR ACCESSORIES (4 POLE)

Mounting No. Of
Part No. Poles Composition Price
Type Auxiliary
AUXILIARY CONTACT
Side Mount 2 Pole 1NO + 1NC UA1 - 11 10.40
2NO AU2 - 20 14.40
2 Pole 2NC AU2 - 02 14.40
Front 1NO + 1NC AU2 - 11 14.40
MC-22/4 TO MC-8/4 Mount 4NO AU4 - 40 27.90
3NO + 1NC AU4 - 31 27.90
4 Pole 2NO + 2NC AU4 - 22 27.90
1NO + 3NC AU4 - 13 27.90
4NC AU4 - 04 27.90
MC-100/4 TO MC-800/4 Side Mount 2 Pole 1NO 1NC AU100 - 11 27.90

Applying
Part No. Type Price
Contractor
MECHANICAL INTERLOCK (FOR REVERSING CONTACTOR)
UR-02 MC-9/4 to MC-18/4 UR-02 14.40
AR-9 MC-22/4 to MC-85/4 AR-9 14.40
AR-180 MC-100/4P to MC-400/4P AR-180 91.40
AR-600 MC-600/4 to MC-800/4 AR-600 1,679.40

Applying Operation Varistor
Part No. Type Price
Contractor Voltage Element
MECHANICAL INTERLOCK (FOR REVERSING CONTACTOR)
All Types AC/DC24-48V 120V US-11 11.70
Varistor MC-9 AC/DC100-125V 270V US-12 11.70
to AC/DC200-240V 470V US-13 11.70
MC-150 AC 380-440V 1000V US-14 11.70

Atca Catalog | Safe Connect Together 3.33
