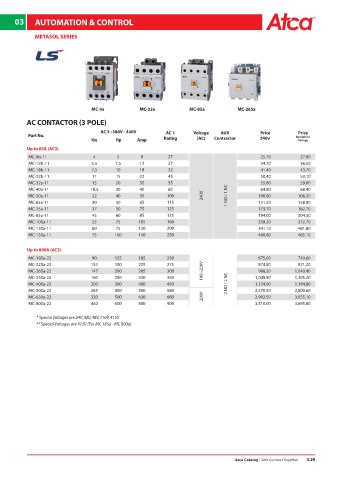

Page 71 - ATCA CATALOG 2019

03 AUTOMATION & CONTROL

METASOL SERIES

MC-9a MC-32a MC-85a MC-265a

AC CONTACTOR (3 POLE)
AC 3 : 380V - 440V AC 1 Voltage AUX Price Price
Part No. Special Coil
Kw Hp Amp Rating (AC) Contractor 240v Voltage
Up to 85A (AC3)
MC-9b-11 4 5 9 27 25.70 27.00
MC-12b-11 5.5 7.5 12 27 34.70 36.50
MC-18b-11 7.5 10 18 32 41.40 43.70
MC-22b-11 11 15 22 45 50.40 53.10
MC-32a-11 15 20 32 55 55.80 59.00
MC-40a-11 18.5 30 40 60 64.80 68.40
MC-50a-11 22 40 50 100 240V 1 NO / 1 NC 100.80 106.20
MC-65a-11 30 50 65 115 151.20 158.90
MC-75a-11 37 50 75 125 173.70 182.70
MC-85a-11 45 60 85 135 194.00 204.30
MC-100a-11 55 75 105 160 259.20 272.70
MC-130a-11 60 75 130 200 341.10 481.80
MC-150a-11 75 100 150 250 460.80 485.10

Up to 800A (AC3)
MC-185a-22 90 125 185 230 675.00 710.60
MC-225a-22 132 150 225 275 874.80 921.20
MC-265a-22 147 200 265 300 100~200V 988.20 1,040.40
MC-330a-22 160 250 330 350 1,049.90 1,105.20
MC-400a-22 200 300 400 450 2 NO / 2 NC 1,134.90 1,194.80
MC-500a-22 265 400 500 580 2,470.50 2,600.60
MC-630a-22 330 500 630 660 200V 2,902.50 3,055.10
MC-800a-22 440 600 800 900 3,510.00 3,695.00

* Special Voltages are 24V, 42V, 48V, 110V, 415V
** Special Voltages are 415V (For MC 185a - MC 800a)
