03 AUTOMATION & CONTROL

METASOL SERIES

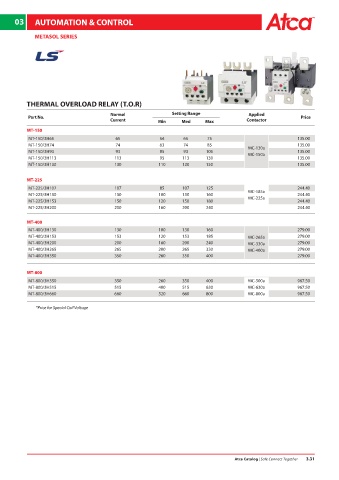

THERMAL OVERLOAD RELAY (T.O.R)

Normal Setting Range Applied
Part No. Price
Current Min Med Max Contactor
MT-150
MT-150/3H65 65 54 65 75 135.00
MT-150/3H74 74 63 74 85 135.00
MC-130a
MT-150/3H93 93 85 93 105 135.00
MC-150a
MT-150/3H113 113 95 113 130 135.00
MT-150/3H130 130 110 130 150 135.00

MT-225
MT-225/3H107 107 85 107 125 244.40
MC-185a
MT-225/3H130 130 100 130 160 244.40
MC-225a
MT-225/3H153 150 120 150 180 244.40
MT-225/3H200 200 160 200 240 244.40
MT-400
MT-400/3H130 130 100 130 160 279.00
MT-400/3H153 153 120 153 185 MC-265a 279.00
MT-400/3H200 200 160 200 240 MC-330a 279.00
MT-400/3H265 265 200 265 330 MC-400a 279.00
MT-400/3H350 350 260 350 400 279.00

MT-800
MT-800/3H350 350 260 350 400 MC-500a 967.50
MT-800/3H515 515 400 515 630 MC-630a 967.50
MT-800/3H660 660 520 660 800 MC-800a 967.50

*Price for Special Coil Voltage

Atca Catalog | Safe Connect Together 3.31
