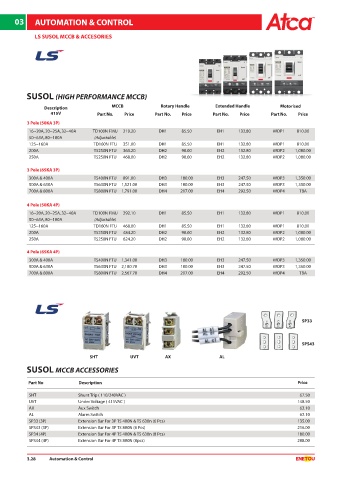

Page 70 - ATCA CATALOG 2019

03 AUTOMATION & CONTROL

LS SUSOL MCCB & ACCESORIES

SUSOL (HIGH PERFORMANCE MCCB)

Description MCCB Rotary Handle Extended Handle Motorised
415V Part No. Price Part No. Price Part No. Price Part No. Price
3 Pole (50KA 3P)
16~20A, 20~25A, 32~40A TD100N FMU 219.20 DH1 85.50 EH1 132.80 MOP1 810.00
50~63A, 80~100A (Adjustable)
125~160A TD160N FTU 351.00 DH1 85.50 EH1 132.80 MOP1 810.00
200A TS250N FTU 363.20 DH2 90.00 EH2 132.80 MOP2 1,080.00
250A TS250N FTU 468.00 DH2 90.00 EH2 132.80 MOP2 1,080.00

3 Pole (65KA 3P)
300A & 400A TS400N FTU 891.00 DH3 180.00 EH3 247.50 MOP3 1,350.00
500A & 630A TS630N FTU 1,521.00 DH3 180.00 EH3 247.50 MOP3 1,350.00
700A & 800A TS800N FTU 1,791.00 DH4 207.00 EH4 292.50 MOP4 TBA

4 Pole (50KA 4P)
16~20A, 20~25A, 32~40A TD100N FMU 292.10 DH1 85.50 EH1 132.80 MOP1 810.00
50~63A, 80~100A (Adjustable)
125~160A TD160N FTU 468.00 DH1 85.50 EH1 132.80 MOP1 810.00
200A TS250N FTU 484.20 DH2 90.00 EH2 132.80 MOP2 1,080.00
250A TS250N FTU 624.20 DH2 90.00 EH2 132.80 MOP2 1,080.00

4 Pole (65KA 4P)
300A & 400A TS400N FTU 1,341.00 DH3 180.00 EH3 247.50 MOP3 1,350.00
500A & 630A TS630N FTU 2,180.70 DH3 180.00 EH3 247.50 MOP3 1,350.00
700A & 800A TS800N FTU 2,567.70 DH4 207.00 EH4 292.50 MOP4 TBA

SP33

SPS43

SHT UVT AX AL
SUSOL MCCB ACCESSORIES

Part No Description Price

SHT Shunt Trip ( 110/240VAC ) 67.50
UVT Under Voltage ( 415VAC ) 148.50
AX Aux Switch 62.10
AL Alarm Switch 62.10
SP33 (3P) Extension Bar For 3P TS 400N & TS 630n (6 Pcs) 135.00
SPS43 (3P) Extension Bar For 3P TS 800N (6 Pcs) 216.00
SP34 (4P) Extension Bar For 4P TS 400N & TS 630n (8 Pcs) 180.00
SPS44 (4P) Extension Bar For 4P TS 800N (8pcs) 288.00

3.28 Automation & Control
