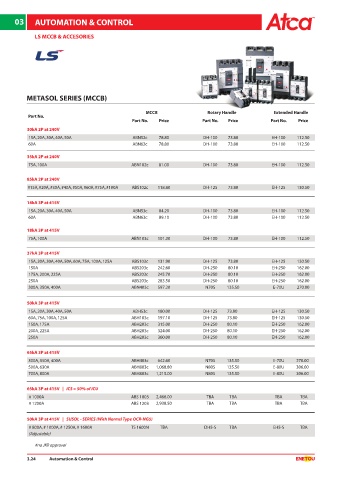

Page 66 - ATCA CATALOG 2019

03 AUTOMATION & CONTROL

LS MCCB & ACCESORIES

METASOL SERIES (MCCB)

MCCB Rotary Handle Extended Handle
Part No.
Part No. Price Part No. Price Part No. Price
30kA 2P at 240V
15A, 20A, 30A, 40A, 50A ABN52c 78.80 DH-100 73.80 EH-100 112.50
60A ABN62c 78.80 DH-100 73.80 EH-100 112.50

35kA 2P at 240V
75A, 100A ABN102c 81.00 DH-100 73.80 EH-100 112.50

85kA 2P at 240V
#15A, #20A, #30A, #40A, #50A, #60A, #75A, #100A ABS102c 118.80 DH-125 73.80 EH-125 130.50

14kA 3P at 415V
15A, 20A, 30A, 40A, 50A ABN53c 84.20 DH-100 73.80 EH-100 112.50
60A ABN63c 89.10 DH-100 73.80 EH-100 112.50

18kA 3P at 415V
75A, 100A ABN103c 101.30 DH-100 73.80 EH-100 112.50

37kA 3P at 415V
15A, 20A, 30A, 40A, 50A, 60A, 75A, 100A, 125A ABS103c 131.90 DH-125 73.80 EH-125 130.50
150A ABS203c 242.60 DH-250 80.10 EH-250 162.00
175A, 200A, 225A ABS203c 245.70 DH-250 80.10 EH-250 162.00
250A ABS203c 283.50 DH-250 80.10 EH-250 162.00
300A, 350A, 400A ABN403c 597.20 N70S 135.50 E-70U 270.00

50kA 3P at 415V
15A, 20A, 30A, 40A, 50A ABH53c 180.00 DH-125 73.80 EH-125 130.50
60A, 75A, 100A, 125A ABH103c 197.10 DH-125 73.80 EH-125 130.50
150A, 175A ABH203c 315.00 DH-250 80.10 EH-250 162.00
200A, 225A ABH203c 324.00 DH-250 80.10 EH-250 162.00
250A ABH203c 360.00 DH-250 80.10 EH-250 162.00

65kA 3P at 415V
300A, 350A, 400A ABH403c 642.60 N70S 135.50 E-70U 270.00
500A, 630A ABH803c 1,068.80 N80S 135.50 E-80U 306.00
700A, 800A ABH803c 1,215.00 N80S 135.50 E-80U 306.00

65kA 3P at 415V | ICS = 50% of ICU
# 1000A ABS 1003 2,466.00 TBA TBA TBA TBA
# 1200A ABS 1203 2,938.50 TBA TBA TBA TBA

50kA 3P at 415V | SUSOL - SERIES (With Normsl Type OCR-NG5)
# 800A, # 1000A, # 1250A, # 1600A TS 1600N TBA DH5-S TBA EH5-S TBA
(Adjustable)
#no JKR approval

3.24 Automation & Control
