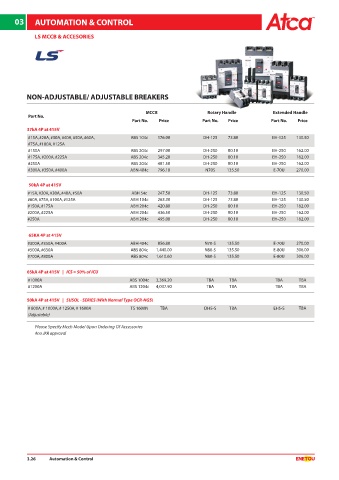

Page 68 - ATCA CATALOG 2019

03 AUTOMATION & CONTROL

LS MCCB & ACCESORIES

NON-ADJUSTABLE/ ADJUSTABLE BREAKERS

MCCB Rotary Handle Extended Handle
Part No.
Part No. Price Part No. Price Part No. Price
37kA 4P at 415V
#15A, #20A, #30A, #40A, #50A, #60A, ABS 104c 176.00 DH-125 73.80 EH-125 130.50
#75A, #100A, #125A
#150A ABS 204c 297.00 DH-250 80.10 EH-250 162.00
#175A, #200A, #225A ABS 204c 345.20 DH-250 80.10 EH-250 162.00
#250A ABS 204c 481.50 DH-250 80.10 EH-250 162.00
#300A, #350A, #400A ABN 404c 796.10 N70S 135.50 E-70U 270.00

50kA 4P at 415V
#15A, #20A, #30A, #40A, #50A ABH 54c 247.50 DH-125 73.80 EH-125 130.50
#60A, #75A, #100A, #125A ABH 104c 263.30 DH-125 73.80 EH-125 130.50
#150A, #175A ABH 204c 420.80 DH-250 80.10 EH-250 162.00
#200A, #225A ABH 204c 436.50 DH-250 80.10 EH-250 162.00
#250A ABH 204c 495.00 DH-250 80.10 EH-250 162.00

65KA 4P at 415V
#300A, #350A, #400A ABH 404c 856.80 N70-S 135.50 E-70U 270.00
#500A, #630A ABS 804c 1,440.00 N80-S 135.50 E-80U 306.00
#700A, #800A ABS 804c 1,610.60 N80-S 135.50 E-80U 306.00

65kA 4P at 415V | ICS = 50% of ICU
#1000A ABS 1004c 3,369.20 TBA TBA TBA TBA
#1200A ABS 1204c 4,037.90 TBA TBA TBA TBA

50kA 4P at 415V | SUSOL - SERIES (With Normal Type OCR-NG5)
# 800A, # 1000A, # 1250A, # 1600A TS 1600N TBA DH5-S TBA EH5-S TBA
(Adjustable)

Please Specify Mccb Model Upon Ordering Of Accessories
#no JKR approval

3.26 Automation & Control
