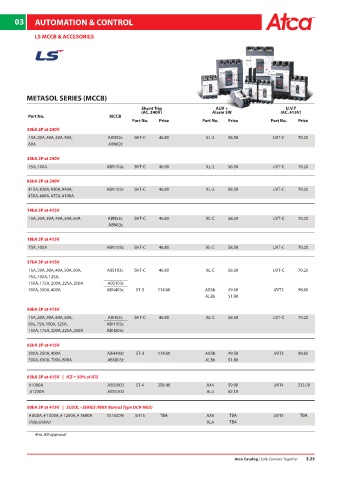

Page 67 - ATCA CATALOG 2019

03 AUTOMATION & CONTROL

LS MCCB & ACCESORIES

METASOL SERIES (MCCB)
Shunt Trip AUX + U.V.T
(AC. 240V) Alarm SW (AC. 415V)
Part No. MCCB
Part No. Price Part No. Price Part No. Price
30kA 2P at 240V
15A, 20A, 30A, 40A, 50A, ABN52c SHT-C 46.80 XL-2 58.50 UVT-C 70.20
60A ABN62c

35kA 2P at 240V
75A, 100A ABN102c SHT-C 46.80 XL-2 58.50 UVT-C 70.20

85kA 2P at 240V
#15A, #20A, #30A, #40A, ABN102c SHT-C 46.80 XL-2 58.50 UVT-C 70.20
#50A, #60A, #75A, #100A

14kA 3P at 415V
15A, 20A, 30A, 40A, 50A, 60A ABN53c SHT-C 46.80 XL-C 58.50 UVT-C 70.20
ABN63c

18kA 3P at 415V
75A, 100A ABN103c SHT-C 46.80 XL-C 58.50 UVT-C 70.20

37kA 3P at 415V
15A, 20A, 30A, 40A, 50A, 60A, ABS103c SHT-C 46.80 XL-C 58.50 UVT-C 70.20
75A, 100A, 125A,
150A, 175A, 200A, 225A, 250A ABS103c
300A, 350A, 400A ABN403c ST-3 114.80 AX3b 49.50 UVT3 98.60
AL3b 51.80

50kA 3P at 415V
15A, 20A, 30A, 40A, 50A, ABH53c SHT-C 46.80 XL-C 58.50 UVT-C 70.20
60a, 75A, 100A, 125A, ABH103c
150A, 175A, 200A, 225A, 250A ABH203c

65kA 3P at 415V
300A, 350A, 400A ABH403c ST-3 114.80 AX3b 49.50 UVT3 98.60
500A, 630A, 700A, 800A ABS803c AL3b 51.80

65kA 3P at 415V | ICS = 50% of ICU
#1000A ABS1003 ST-4 356.40 AX4 59.90 UVT4 333.00
#1200A ABS1203 AL4 62.10

50kA 3P at 415V | SUSOL - SERIES (With Normsl Type OCR-NG5)
# 800A, # 1000A, # 1250A, # 1600A TS1600N SHT5 TBA AX4 TBA UVT5 TBA
(Adjustable) AL4 TBA

#no JKR approval

Atca Catalog | Safe Connect Together 3.25
