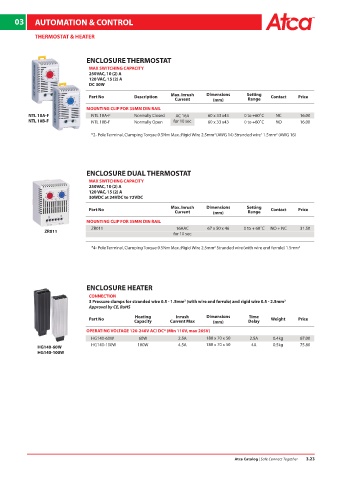

Page 65 - ATCA CATALOG 2019

03 AUTOMATION & CONTROL

THERMOSTAT & HEATER

ENCLOSURE THERMOSTAT
MAX SWITCHING CAPACITY
250VAC, 10 (2) A
120 VAC, 15 (2) A
DC 30W
Max. Inrush Dimensions Setting
Part No Description Contact Price
Current (mm) Range
MOUNTING CLIP FOR 35MM DIN RAIL
NTL 10A-F NTL 10A-F Normally Closed AC 16A 60 x 33 x43 0 to +60˚C NC 16.00
NTL 10B-F NTL 10B-F Normally Open for 10 sec 60 x 33 x43 0 to +60˚C NO 16.00

*2- Pole Terminal, Clamping Torque 0.5Nm Max.: Rigid Wire 2.5mm (AWG 14) Stranded wire 1.5mm (AWG 16)
2
2
1

ENCLOSURE DUAL THERMOSTAT
MAX SWITCHING CAPACITY
250VAC, 10 (2) A
120 VAC, 15 (2) A
30WDC at 24VDC to 72VDC
Max. Inrush Dimensions Setting
Part No Contact Price
Current (mm) Range
MOUNTING CLIP FOR 35MM DIN RAIL
ZR011 16AAC 67 x 50 x 46 0 to + 60˚C NO + NC 31.50
ZR011
for 10 sec
*4- Pole Terminal, Clamping Torque 0.5Nm Max.: Rigid Wire 2.5mm Stranded wire(with wire end ferrule) 1.5mm 2
2

ENCLOSURE HEATER
CONNECTION
3 Pressure clamps for stranded wire 0.5 - 1.5mm (with wire end ferrule) and rigid wire 0.5 - 2.5mm 2
2
Approval by CE, RoHS
Heating Inrush Dimensions Time
Part No Weight Price
Capacity Current Max (mm) Delay
OPERATING VOLTAGE 120-240V AC/ DC* (Min 110V, max 265V)
HG140-60W 60W 2.5A 180 x 70 x 50 2.5A 0.4kg 67.00
HG140-60W HG140-100W 100W 4.5A 180 x 70 x 50 4A 0.5kg 75.80
HG140-100W

Atca Catalog | Safe Connect Together 3.23
