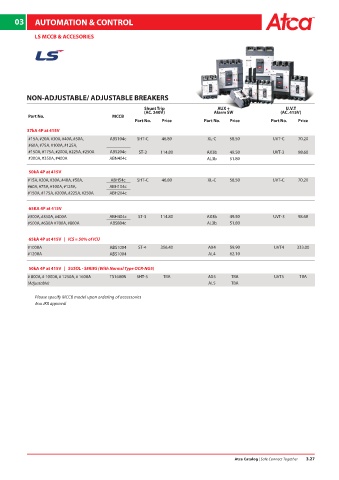

Page 69 - ATCA CATALOG 2019
P. 69
03 AUTOMATION & CONTROL
LS MCCB & ACCESORIES
NON-ADJUSTABLE/ ADJUSTABLE BREAKERS
Shunt Trip AUX + U.V.T
(AC. 240V) Alarm SW (AC. 415V)
Part No. MCCB
Part No. Price Part No. Price Part No. Price
37kA 4P at 415V
#15A, #20A, #30A, #40A, #50A, ABS104c SHT-C 46.80 XL-C 58.50 UVT-C 70.20
#60A, #75A, #100A, #125A,
#150A, #175A, #200A, #225A, #250A ABS204c ST-3 114.80 AX3b 49.50 UVT-3 98.60
#300A, #350A, #400A ABN404c AL3b 51.80
50kA 4P at 415V
#15A, #20A, #30A, #40A, #50A, ABH54c SHT-C 46.80 XL-C 58.50 UVT-C 70.20
#60A, #75A, #100A, #125A, ABH104c
#150A, #175A, #200A, #225A, #250A ABH204c
65KA 4P at 415V
#300A, #350A, #400A ABH404c ST-3 114.80 AX3b 49.50 UVT-3 98.60
#500A, #630A #700A, #800A ABS804c AL3b 51.80
65kA 4P at 415V | ICS = 50% of ICU
#1000A ABS1004 ST-4 356.40 AX4 59.90 UVT4 333.00
#1200A ABS1004 AL4 62.10
50kA 4P at 415V | SUSOL - SERIES (With Normsl Type OCR-NG5)
# 800A, # 1000A, # 1250A, # 1600A TS1600N SHT-5 TBA AX5 TBA UVT5 TBA
(Adjustable) AL5 TBA
Please specify MCCB model upon ordering of accessories
#no JKR approval
