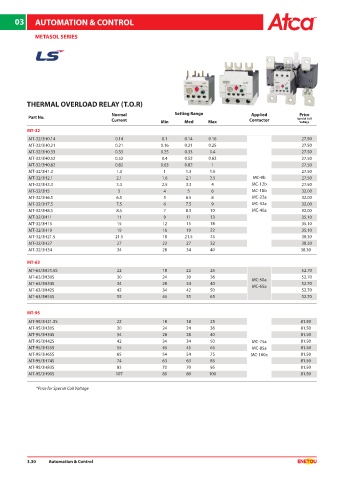

Page 72 - ATCA CATALOG 2019

03 AUTOMATION & CONTROL

METASOL SERIES

THERMAL OVERLOAD RELAY (T.O.R)

Normal Setting Range Applied Price
Part No. Special Coil
Current Min Med Max Contactor Voltage
MT-32
MT-32/3H0.14 0.14 0.1 0.14 0.16 27.50
MT-32/3H0.21 0.21 0.16 0.21 0.25 27.50
MT-32/3H0.33 0.33 0.25 0.33 0.4 27.50
MT-32/3H0.52 0.52 0.4 0.52 0.63 27.50
MT-32/3H0.82 0.82 0.63 0.82 1 27.50
MT-32/3H1.3 1.3 1 1.3 1.6 27.50
MT-32/3H2.1 2.1 1.6 2.1 2.5 MC-9b 27.50
MT-32/3H3.3 3.3 2.5 3.3 4 MC-12b 27.50
MT-32/3H5 5 4 5 6 MC-18b 32.00
MT-32/3H6.5 6.5 5 6.5 8 MC-22a 32.00
MT-32/3H7.5 7.5 6 7.5 9 MC-32a 32.00
MT-32/3H8.5 8.5 7 8.5 10 MC-40a 32.00
MT-32/3H11 11 9 11 13 35.10
MT-32/3H15 15 12 15 18 35.10
MT-32/3H19 19 16 19 22 35.10
MT-32/3H21.5 21.5 18 21.5 25 38.30
MT-32/3H27 27 22 27 32 38.30
MT-32/3H34 34 28 34 40 38.30

MT-63
MT-63/3H21.5S 22 18 22 25 52.70
MT-63/3H30S 30 24 30 36 52.70
MC-50a
MT-63/3H34S 34 28 34 40 52.70
MC-65a
MT-63/3H42S 42 34 42 50 52.70
MT-63/3H55S 55 45 55 65 52.70

MT-95
MT-95/3H21.5S 22 18 18 25 81.50
MT-95/3H30S 30 24 24 36 81.50
MT-95/3H34S 34 28 28 40 81.50
MT-95/3H42S 42 34 34 50 MC-75a 81.50
MT-95/3H55S 55 45 45 65 MC-85a 81.50
MT-95/3H65S 65 54 54 75 MC-100a 81.50
MT-95/3H74S 74 63 63 85 81.50
MT-95/3H83S 83 70 70 95 81.50
MT-95/3H90S 107 80 80 100 81.50

*Price for Special Coil Voltage

3.30 Automation & Control
