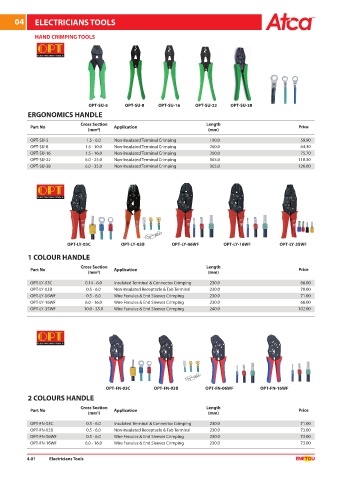

Page 76 - ATCA CATALOG 2019

04 ELECTRICIANS TOOLS

HAND CRIMPING TOOLS

OPT-SU-5 OPT-SU-8 OPT-SU-16 OPT-SU-22 OPT-SU-38
ERGONOMICS HANDLE

Cross Section Length
Part No Application Price
(mm²) (mm)
OPT-SU-5 1.5 - 6.0 Non-Insulated Terminal Crimping 190.0 59.90
OPT-SU-8 1.5 - 10.0 Non-Insulated Terminal Crimping 260.0 64.30
OPT-SU-16 1.5 - 16.0 Non-Insulated Terminal Crimping 260.0 75.70
OPT-SU-22 6.0 - 25.0 Non-Insulated Terminal Crimping 365.0 110.30
OPT-SU-38 6.0 - 35.0 Non-Insulated Terminal Crimping 365.0 126.00

OPT-LY-03C OPT-LY-03B OPT-LY-06WF OPT-LY-16WF OPT-LY-35WF

1 COLOUR HANDLE
Cross Section Length
Part No Application Price
(mm²) (mm)
OPT-LY-03C 0.14 - 6.0 Insulated Terminal & Connector Crimping 230.0 66.00
OPT-LY-03B 0.5 - 6.0 Non-Insulated Receptacle & Tab Terminal 230.0 70.00
OPT-LY-06WF 0.5 - 6.0 Wire Ferrules & End Sleeves Crimping 230.0 71.00
OPT-LY-16WF 6.0 - 16.0 Wire Ferrules & End Sleeves Crimping 230.0 66.00
OPT-LY-35WF 10.0 - 35.0 Wire Ferrules & End Sleeves Crimping 240.0 102.00

OPT-FN-03C OPT-FN-03B OPT-FN-06WF OPT-FN-16WF
2 COLOURS HANDLE

Cross Section Length
Part No Application Price
(mm²) (mm)
OPT-FN-03C 0.5 - 6.0 Insulated Terminal & Connector Crimping 230.0 71.00
OPT-FN-03B 0.5 - 6.0 Non-Insulated Receptacle & Tab Terminal 230.0 73.00
OPT-FN-06WF 0.5 - 6.0 Wire Ferrules & End Sleeves Crimping 230.0 73.00
OPT-FN-16WF 6.0 - 16.0 Wire Ferrules & End Sleeves Crimping 230.0 73.00

4.01 Electricians Tools
