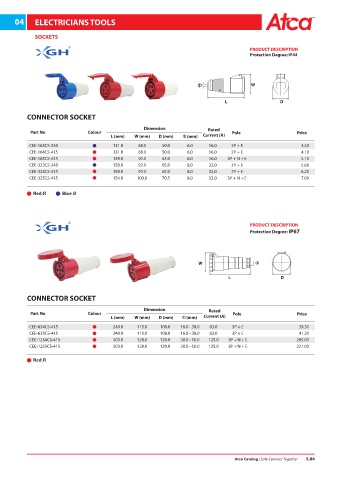

Page 85 - ATCA CATALOG 2019
P. 85
04 ELECTRICIANS TOOLS
SOCKETS
® PRODUCT DESCRIPTION
Protection Degree: IP44
W
L D
CONNECTOR SOCKET
Dimension Rated
Part No Colour Pole Price
L (mm) W (mm) D (mm) (mm) Current (A)
CEE-163CS-240 131.0 68.0 50.0 6.0 16.0 2P + E 3.50
CEE-164CS-415 131.0 68.0 50.0 6.0 16.0 2P + E 4.10
CEE-165CS-415 139.0 90.0 63.0 8.0 16.0 3P + N + E 5.10
CEE-323CS-240 150.0 92.0 65.0 8.0 32.0 2P + E 5.60
CEE-324CS-415 150.0 92.0 65.0 8.0 32.0 2P + E 6.20
CEE-325CS-415 154.0 100.0 70.5 8.0 32.0 3P + N + E 7.00
® PRODUCT DESCRIPTION
Protection Degree: IP67
W
L D
CONNECTOR SOCKET
Dimension Rated
Part No Colour Pole Price
L (mm) W (mm) D (mm) (mm) Current (A)
CEE-634CS-415 240.0 115.0 108.0 16.0 - 38.0 63.0 3P + E 39.30
CEE-635CS-415 240.0 115.0 108.0 16.0 - 38.0 63.0 3P + E 41.20
CEE-1254CS-415 303.0 128.0 120.0 30.0 - 50.0 125.0 3P + N + E 205.00
CEE-1255CS-415 303.0 128.0 120.0 30.0 - 50.0 125.0 3P + N + E 221.00
Atca Catalog | Safe Connect Together 5.04
