Page 1028 - 2006 HARLEY FLSTCI SERVICE MANUAL

Install the countershaft 5th gear (19) on the countershaft.
7-23

Countershaft 3rd Countershaft 1st Countershaft 4th 2006 Softail: Transmission

Secure 5th gear with a retaining ring. Countershaft

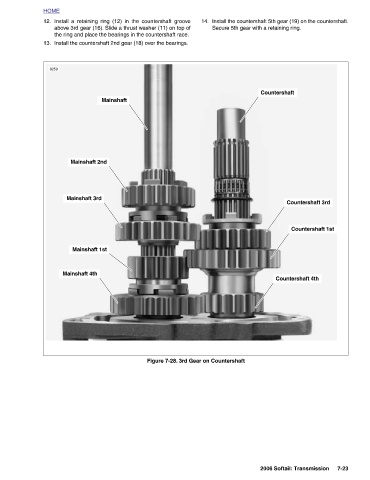

Figure 7-28. 3rd Gear on Countershaft

14.

above 3rd gear (16). Slide a thrust washer (11) on top of
Install a retaining ring (12) in the countershaft groove
the ring and place the bearings in the countershaft race.
Install the countershaft 2nd gear (18) over the bearings.

Mainshaft

Mainshaft 2nd Mainshaft 3rd Mainshaft 1st Mainshaft 4th

HOME 12. 13. 8259
