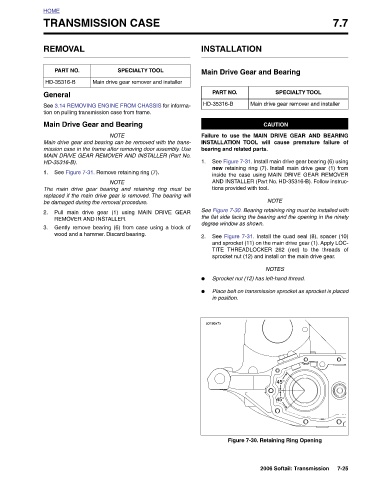

Page 1030 - 2006 HARLEY FLSTCI SERVICE MANUAL

7.7 SPECIALTY TOOL Main drive gear remover and installer TOOL will cause premature failure of THREADLOCKER 262 (red) to the threads of 7-25 2006 Softail: Transmission

INSTALLATION Main Drive Gear and Bearing PART NO. HD-35316-B CAUTION Failure to use the MAIN DRIVE GEAR AND BEARING INSTALLATION bearing and related parts. See Figure 7-31. Install main drive gear bearing (6) using 1. new retaining ring (7). Install main drive gear (1) from inside the case using MAIN DRIVE GEAR REMOVER AND INSTALLER (Part No. HD-35316-B). Follow instruc- tions provided with tool. NOTE See Figure 7-30. Bearing retaining ring must be installed with the flat side facing the bearing and the opening in the ninety degree window as shown. See Figure 7-31. Install the quad seal (8), spacer (10) 2. and sprocket (11) on the m

SPECIALTY TOOL Main drive gear remover and installer See 3.14 REMOVING ENGINE FROM CHASSIS for informa- tion on pulling transmission case from frame. NOTE Main drive gear and bearing can be removed with the trans- mission case in the frame after removing door assembly. Use MAIN DRIVE GEAR REMOVER AND INSTALLER (Part No. See Figure 7-31. Remove retaining ring (7). NOTE The main drive gear bearing and retaining ring must be replaced if the main drive gear is removed. The bearing will be damaged during the removal procedure. Pull main drive gear (1) using MAIN DRIVE GEAR Gently remove bearing (6) from case using a block of wood and a h
TRANSMISSION CASE

HOME REMOVAL PART NO. HD-35316-B General Main Drive Gear and Bearing HD-35316-B). 1. 2. REMOVER AND INSTALLER. 3.
