Page 1025 - 2006 HARLEY FLSTCI SERVICE MANUAL

(11) on top of the gear and secure with a retaining ring
(12). Install mainshaft 1st gear (13) with the shifter fork
gear (10) over the bearings. Install one thrust washer

slot facing the side door. Slide countershaft 4th gear (14) onto the countershaft Place bearing in countershaft race and install the coun- tershaft 1st gear (15) with the lip on the gear resting on the spacer and the pockets in the gear facing away from the side door. Install a thrust washer (11) on top of the gear and secure with a retaining ring (12). Slip spacers (3, 4) on the shafts with the tapers facing the access door bearings. The mainshaft spacer has a shoulder while the countershaft spacer does not. Countershaft Countershaft 1st Countershaft 4th

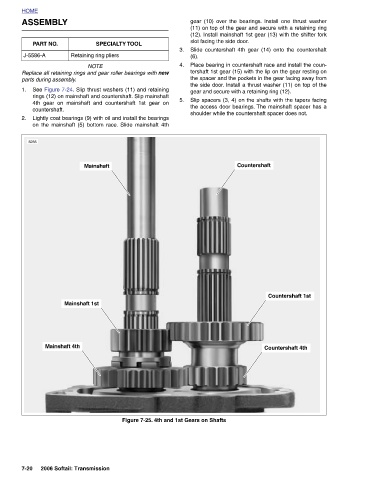

3. (6). 4. 5. Figure 7-25. 4th and 1st Gears on Shafts

SPECIALTY TOOL

Retaining ring pliers NOTE Replace all retaining rings and gear roller bearings with new See Figure 7-24. Slip thrust washers (11) and retaining rings (12) on mainshaft and countershaft. Slip mainshaft 4th gear on mainshaft and countershaft 1st gear on Lightly coat bearings (9) with oil and install the bearings on the mainshaft (5) bottom race. Slide mainshaft 4th Mainshaft Mainshaft 1st 2006 Softail: Transmission

ASSEMBLY PART NO. parts during assembly. countershaft. Mainshaft 4th

HOME J-5586-A 1. 2. 8255 7-20
