above 1st gear. Insert a thrust washer (11) on top of the
retaining ring and place the bearings into the mainshaft
Install a retaining ring (12) in the mainshaft groove just
Install one spacer (7) and nut (8) on each shaft and
3rd gear with a thrust washer (11) and retaining ring (12).
7-21
of the transmission top cover access cover hole when
Place mainshaft 3rd gear (17) over bearings and secure
tighten the nuts finger tight. Do not tighten at this time.
Countershaft 1st Countershaft 4th 2006 Softail: Transmission
viewing the side door from the top. Countershaft

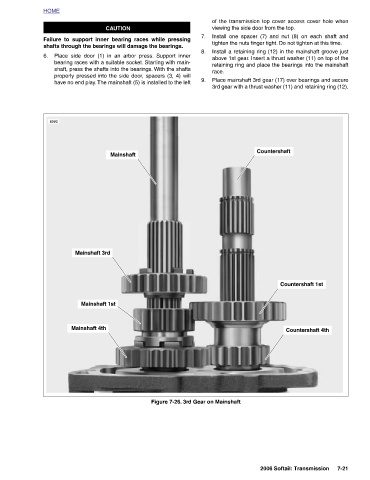

Figure 7-26. 3rd Gear on Mainshaft

7. 8. race. 9.

CAUTION Failure to support inner bearing races while pressing shafts through the bearings will damage the bearings. Place side door (1) in an arbor press. Support inner bearing races with a suitable socket. Starting with main- shaft, press the shafts into the bearings. With the shafts properly pressed into the side door, spacers (3, 4) will have no end play. The mainshaft (5) is installed to the left Mainshaft

Mainshaft 3rd Mainshaft 1st Mainshaft 4th
