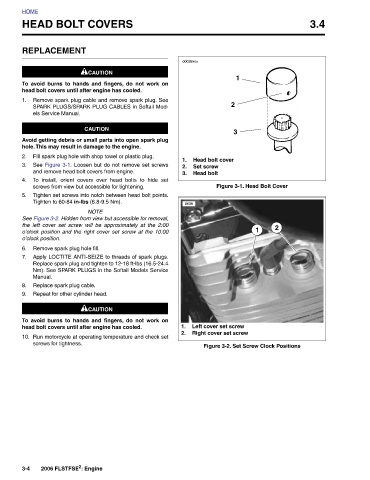

                                                                 Figure 3-1. Head Bolt Cover  2  1                 Figure 3-2. Set Screw Clock Positions







                               1                3
                                       2
                                                        Head bolt cover  Set screw  Head bolt                Left cover set screw Right cover set screw




                         o0039xox                       1.  2.  3.    8639                                   1.  2.











              HEAD BOLT COVERS  1CAUTION To  avoid burns to hands and fingers, do not work on head bolt covers until after engine has cooled. Remove spark plug cable and remove spark plug. See SPARK PLUGS/SPARK PLUG CABLES in Softail Mod-  els Service Manual.  CAUTION Avoid getting debris or small parts into open spark plug hole. This may result in damage to the engine.  FIll spark plug hole with shop towel or plastic plug.  See Figure 3-1. Loosen but do not remove set screws and remove head bolt covers from engine. To install, orient covers over head bolts to hide set screws from view but accessible for tightening. Tighten set screws into notch between head bolt p
















          HOME        REPLACEMENT     1.               2.  3.  4.  5.            o’clock position.  6.  7.  Manual.  8.  9.  10.                         3-4
