Wire seal Seal pin

Socket housing Socket terminal Arrow points to external latch

Internal seal Figure B-9. Depress Terminal Latches/Back Out Pins

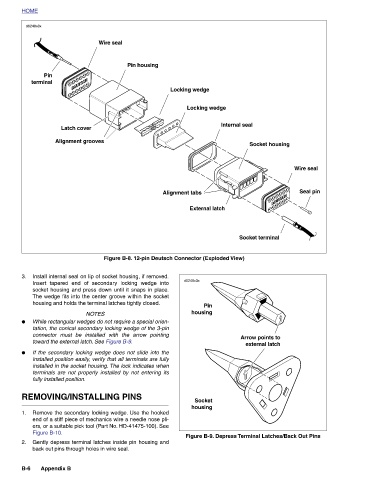

Locking wedge Locking wedge Alignment tabs External latch Figure B-8. 12-pin Deutsch Connector (Exploded View) d0249x3x Pin housing Socket housing

Pin housing

Wire seal Install internal seal on lip of socket housing, if removed. Insert tapered end of secondary locking wedge into socket housing and press down until it snaps in place. The wedge fits into the center groove within the socket housing and holds the terminal latches tightly closed. NOTES While rectangular wedges do not require a special orien- tation, the conical secondary locking wedge of the 3-pin connector must be installed with the arrow pointing If the secondary locking wedge does not slide into the installed position easily, verify that all terminals are fully install

Latch cover Alignment grooves toward the external latch. See Figure B-9. REMOVING/INSTALLING PINS back out pins through holes in wire seal.

Pin terminal fully installed position. Figure B-10. Appendix B
