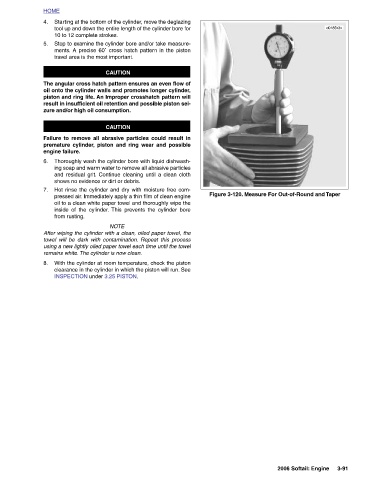

                                                                       Figure 3-120. Measure For Out-of-Round and Taper
                                                                                                                                                                 2006 Softail: Engine


























              Starting at the bottom of the cylinder, move the deglazing
                tool up and down the entire length of the cylinder bore for













                  10 to 12 complete strokes. Stop to examine the cylinder bore and/or take measure- ments. A precise 60˚ cross hatch pattern in the piston travel area is the most important.  CAUTION The angular cross hatch pattern ensures an even flow of oil onto the cylinder walls and promotes longer cylinder, piston and ring life. An Improper crosshatch pattern will result in insufficient oil retention and possible piston sei- zure and/or high oil consumption.  CAUTION Failure to remove all abrasive particles could result in premature cylinder, piston and ring wear and possible Thoroughly wash the cylinder bore with liquid dishwash- ing soap and warm water to remo
