Page 873 - 2006 HARLEY FLSTCI SERVICE MANUAL

4
5
6

1
2

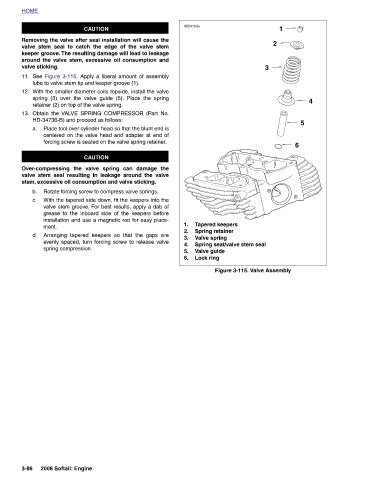

3 Figure 3-115. Valve Assembly

Tapered keepers Spring retainer Valve spring Spring seat/valve stem seal Valve guide Lock ring

d0241b3x 1. 2. 3. 4. 5. 6.

CAUTION Removing the valve after seal installation will cause the valve stem seal to catch the edge of the valve stem keeper groove. The resulting damage will lead to leakage around the valve stem, excessive oil consumption and See Figure 3-115. Apply a liberal amount of assembly lube to valve stem tip and keeper groove (1). With the smaller diameter coils topside, install the valve spring (3) over the valve guide (5). Place the spring retainer (2) on top of the valve spring. Obtain the VALVE SPRING COMPRESSOR (Part No. HD-34736-B) and proceed as follows: Place tool over cylinder head so that the blunt end is centered on the valve head and adap

valve sticking. a. b. c. ment. d. spring compression. 2006 Softail: Engine

HOME 11. 12. 13. 3-86
