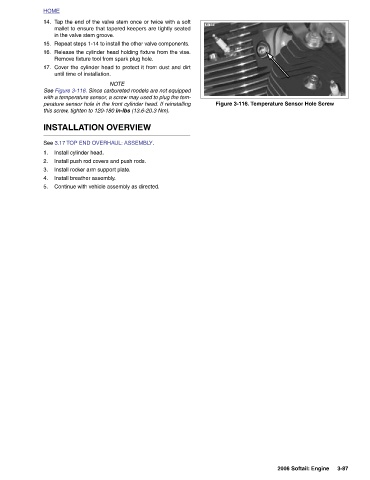

                                         Figure 3-116. Temperature Sensor Hole Screw
                                                                                                                                                                 2006 Softail: Engine






















               8744


              Tap the end of the valve stem once or twice with a soft
                mallet to ensure that tapered keepers are tightly seated













                  in the valve stem groove. Repeat steps 1-14 to install the other valve components.  Release the cylinder head holding fixture from the vise. Remove fixture tool from spark plug hole. Cover the cylinder head to protect it from dust and dirt until time of installation.  NOTE See Figure 3-116. Since carbureted models are not equipped with a temperature sensor, a screw may used to plug the tem- perature sensor hole in the front cylinder head. If reinstalling this screw, tighten to 120-180 in-lbs (13.6-20.3 Nm).  INSTALLATION OVERVIEW See 3.17 TOP END OVERHAUL: ASSEMBLY.  Install cylinder head. Install push rod covers and push rods. Install rocker arm s
