1.1.4 M/B damaged by user (CID)

01. PCB scratched (and trace damaged)
02. PCB bent (over 4.8mm)

03. Circuit damaged (reject if over 4 adjacent traces)
04. Oxidized (reject if over 1 year)
05. Chipset burn out (repair if pad is good)
06. Component broken (repair if pad is good)
<<Please refer to CID 1.6 or 2.1 for detail. >>

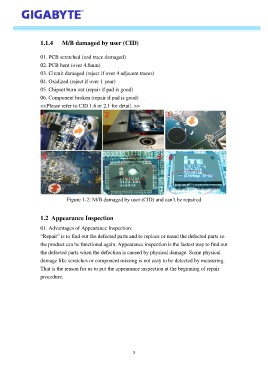

Figure 1-2: M/B damaged by user (CID) and can’t be repaired

1.2 Appearance Inspection

01. Advantages of Appearance Inspection:
“Repair” is to find out the defected parts and to replace or mend the defected parts so

the product can be functional again. Appearance inspection is the fastest way to find out
the defected parts when the defection is caused by physical damage. Some physical
damage like scratches or component missing is not easy to be detected by measuring.

That is the reason for us to put the appearance inspection at the beginning of repair
procedure.

3
