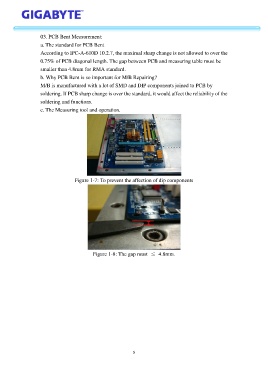

03. PCB Bent Measurement:
a. The standard for PCB Bent
According to IPC-A-610D 10.2.7, the maximal sharp change is not allowed to over the
0.75% of PCB diagonal length. The gap between PCB and measuring table must be
smaller than 4.8mm for RMA standard.
b. Why PCB Bent is so important for M/B Repairing?
M/B is manufactured with a lot of SMD and DIP components joined to PCB by
soldering. If PCB sharp change is over the standard, it would affect the reliability of the
soldering and functions.
c. The Measuring tool and operation.
Figure 1-7: To prevent the affection of dip components
Figure 1-8: The gap must ≦ 4.8mm.
