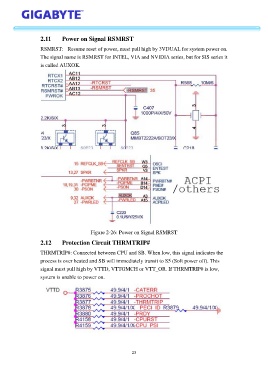

2.11      Power on Signal RSMRST

                   RSMRST:    Resume reset of power, must pull high by 3VDUAL for system power on.
                   The signal name is RSMRST for INTEL, VIA and NVIDIA series, but for SIS series it
                   is called AUXOK.












































                                         Figure 2-26: Power on Signal RSMRST

                   2.12      Protection Circuit THRMTRIP#

                   THRMTRIP#: Connected between CPU and SB. When low, this signal indicates the
                   process is over heated and SB will immediately transit to S5 (Soft power off). This

                   signal must pull high by VTTD, VTTGMCH or VTT_OR. If THRMTRIP# is low,
                   system is unable to power on.


















                                                            23
