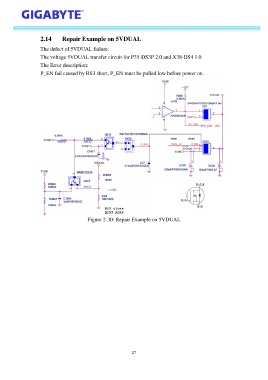

2.14      Repair Example on 5VDUAL

                   The defect of 5VDUAL failure:
                   The voltage 5VDUAL transfer circuit for P35-DS3P 2.0 and X38-DS4 1.0
                   The Error description:

                   P_EN fail caused by RS3 short, P_EN must be pulled low before power on.





































                                        Figure 2-30: Repair Example on 5VDUAL



































                                                            27
