EOS 90638-A-PHY-0023 Mounting the band guide

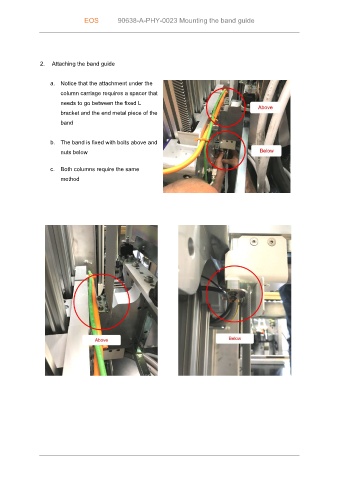

2. Attaching the band guide

a. Notice that the attachment under the

column carriage requires a spacer that
needs to go between the fixed L
bracket and the end metal piece of the
band

b. The band is fixed with bolts above and
nuts below

c. Both columns require the same
method
