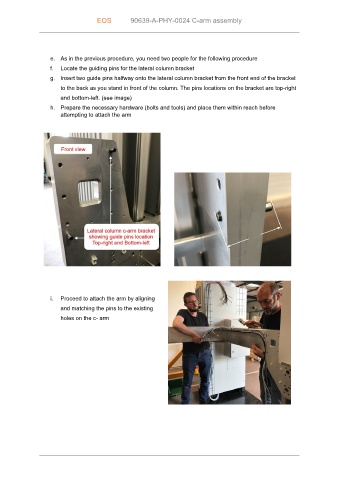

EOS 90639-A-PHY-0024 C-arm assembly

e. As in the previous procedure, you need two people for the following procedure
f. Locate the guiding pins for the lateral column bracket
g. Insert two guide pins halfway onto the lateral column bracket from the front end of the bracket
to the back as you stand in front of the column. The pins locations on the bracket are top-right

and bottom-left. (see image)
h. Prepare the necessary hardware (bolts and tools) and place them within reach before
attempting to attach the arm

i. Proceed to attach the arm by aligning
and matching the pins to the existing
holes on the c- arm
