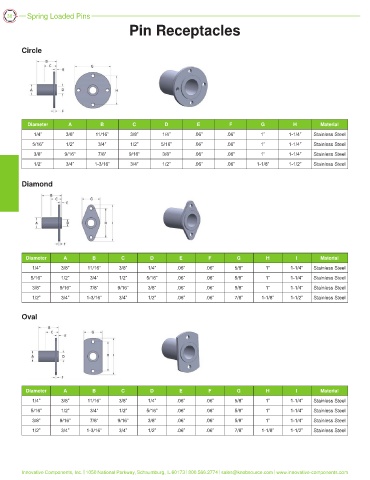

38 Spring Loaded Pins
Pin Receptacles
Circle
Diameter A B C D E F G H Material
1/4” 3/8” 11/16” 3/8” 1/4” .06” .06” 1” 1-1/4” Stainless Steel
5/16” 1/2” 3/4” 1/2” 5/16” .06” .06” 1” 1-1/4” Stainless Steel
3/8” 9/16” 7/8” 9/16” 3/8” .06” .06” 1” 1-1/4” Stainless Steel
1/2” 3/4” 1-3/16” 3/4” 1/2” .06” .06” 1-1/8” 1-1/2” Stainless Steel
Diamond
Diameter A B C D E F G H I Material
1/4” 3/8” 11/16” 3/8” 1/4” .06” .06” 5/8” 1” 1-1/4” Stainless Steel
5/16” 1/2” 3/4” 1/2” 5/16” .06” .06” 5/8” 1” 1-1/4” Stainless Steel
3/8” 9/16” 7/8” 9/16” 3/8” .06” .06” 5/8” 1” 1-1/4” Stainless Steel
1/2” 3/4” 1-3/16” 3/4” 1/2” .06” .06” 7/8” 1-1/8” 1-1/2” Stainless Steel
Oval
Diameter A B C D E F G H I Material
1/4” 3/8” 11/16” 3/8” 1/4” .06” .06” 5/8” 1” 1-1/4” Stainless Steel
5/16” 1/2” 3/4” 1/2” 5/16” .06” .06” 5/8” 1” 1-1/4” Stainless Steel
3/8” 9/16” 7/8” 9/16” 3/8” .06” .06” 5/8” 1” 1-1/4” Stainless Steel
1/2” 3/4” 1-3/16” 3/4” 1/2” .06” .06” 7/8” 1-1/8” 1-1/2” Stainless Steel
