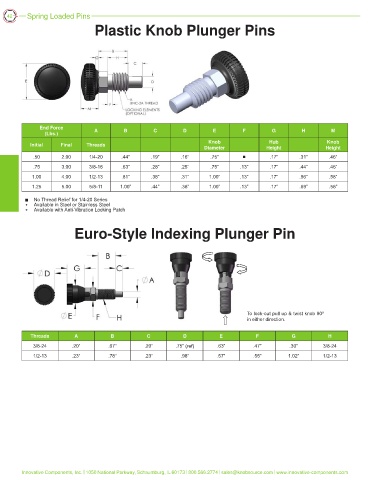

42 Spring Loaded Pins
Plastic Knob Plunger Pins

End Force A B C D E F G H M
(Lbs.)
Knob Hub Knob
Initial Final Threads
Diameter Height Height
.50 2.00 1/4-20 .44” .19” .16” .75” ■ .17” .31” .46”
.75 3.00 3/8-16 .63” .28” .25” .75” .13” .17” .44” .46”
1.00 4.00 1/2-13 .81” .38” .31” 1.00” .13” .17” .56” .58”
1.25 5.00 5/8-11 1.00” .44” .38” 1.00” .13” .17” .69” .58”
■ No Thread Relief for 1/4-20 Series
* Available in Steel or Stainless Steel
* Available with Anti-Vibration Locking Patch

Euro-Style Indexing Plunger Pin

To lock-out pull up & twist knob 90º
in either direction.

Threads A B C D E F G H
3/8-24 .20” .67” .20” .75” (ref) .63” .47” .30” 3/8-24
1/2-13 .23” .78” .23” .98” .57” .55” 1.02” 1/2-13
