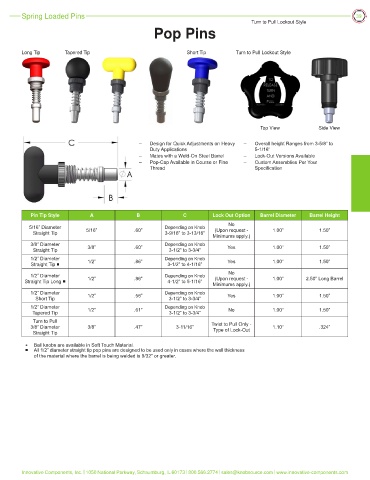

Page 39 - Catalog_Digital_07.08.19

Spring Loaded Pins 39
Turn to Pull Lockout Style
Pop Pins

Long Tip Tapered Tip Short Tip Turn to Pull Lockout Style

Top View Side View

– Design for Quick Adjustments on Heavy – Overall height Ranges from 3-5/8” to
Duty Applications 5-1/16”
– Mates with a Weld-On Steel Barrel – Lock-Out Versions Available
– Pop-Cap Available in Course or Fine – Custom Assemblies Per Your
Thread Specification

Pin Tip Style A B C Lock Out Option Barrel Diameter Barrel Height
No
5/16” Diameter 5/16” .60” Depending on Knob (Upon request - 1.00” 1.50”
Straight Tip 3-9/16” to 3-13/16”
Minimums apply.)
3/8” Diameter 3/8” .60” Depending on Knob Yes 1.00” 1.50”
Straight Tip 3-1/2” to 3-3/4”
1/2” Diameter Depending on Knob
Straight Tip ■ 1/2” .86” 3-1/2” to 4-1/16” Yes 1.00” 1.50”
1/2” Diameter Depending on Knob No
Straight Tip Long ■ 1/2” .86” 4-1/2” to 5-1/16” (Upon request - 1.00” 2.50” Long Barrel
Minimums apply.)
1/2” Diameter 1/2” .56” Depending on Knob Yes 1.00” 1.50”
Short Tip 3-1/2” to 3-3/4”
1/2” Diameter 1/2” .61” Depending on Knob No 1.00” 1.50”
Tapered Tip 3-1/2” to 3-3/4”
Turn to Pull
3/8” Diameter 3/8” .47” 3-11/16” Twist to Pull Only - 1.10” .324”
Type of Lock-Out
Straight Tip
* ■ Ball knobs are available in Soft Touch Material.
All 1/2” diameter straight tip pop pins are designed to be used only in cases where the wall thickness
of the material where the barrel is being welded is 9/32” or greater.
