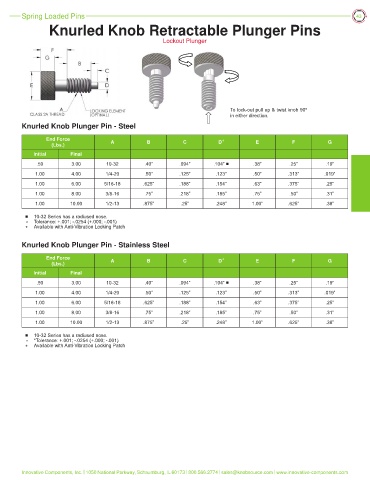

Page 43 - Catalog_Digital_07.08.19

Spring Loaded Pins 43
Knurled Knob Retractable Plunger Pins

Lockout Plunger

To lock-out pull up & twist knob 90º
in either direction.
Knurled Knob Plunger Pin - Steel

End Force D°
(Lbs.) A B C E F G
Initial Final
.50 3.00 10-32 .40” .094” .104” ■ .38” .25” .19”
1.00 4.00 1/4-20 .50” .125” .123” .50” .313” .019”
1.00 6.00 5/16-18 .625” .188” .154” .63” .375” .25”
1.00 8.00 3/8-16 .75” .218” .185” .75” .50” .31”
1.00 10.00 1/2-13 .875” .25” .248” 1.00” .625” .38”

■ 10-32 Series has a radiused nose.
° Tolerance: +.001; -.0254 (+.000; -.001)
* Available with Anti-Vibration Locking Patch

Knurled Knob Plunger Pin - Stainless Steel
End Force D°
(Lbs.) A B C E F G
Initial Final
.50 3.00 10-32 .40” .094” .104” ■ .38” .25” .19”
1.00 4.00 1/4-20 .50” .125” .123” .50” .313” .019”
1.00 6.00 5/16-18 .625” .188” .154” .63” .375” .25”
1.00 8.00 3/8-16 .75” .218” .185” .75” .50” .31”
1.00 10.00 1/2-13 .875” .25” .248” 1.00” .625” .38”
■ 10-32 Series has a radiused nose.
° *Tolerance: +.001; -.0254 (+.000; -.001)
* Available with Anti-Vibration Locking Patch
