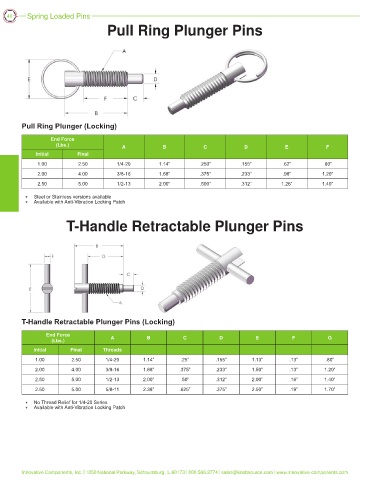

40 Spring Loaded Pins
Pull Ring Plunger Pins

Pull Ring Plunger (Locking)

End Force
(Lbs.) A B C D E F
Initial Final
1.00 2.50 1/4-20 1.14” .250” .155” .62” .80”
2.00 4.00 3/8-16 1.68” .375” .233” .98” 1.20”
2.50 5.00 1/2-13 2.00” .500” .312” 1.26” 1.40”

* Steel or Stainless versions available
* Available with Anti-Vibration Locking Patch

T-Handle Retractable Plunger Pins

T-Handle Retractable Plunger Pins (Locking)

End Force
(Lbs.) A B C D E F G
Initial Final Threads

1.00 2.50 1/4-20 1.14” .25” .155” 1.13” .13” .80”
2.00 4.00 3/8-16 1.68” .375” .233” 1.50” .13” 1.20”
2.50 5.00 1/2-13 2.00” .50” .312” 2.00” .16” 1.40”
2.50 5.00 5/8-11 2.38” .625” .375” 2.50” .19” 1.70”
* No Thread Relief for 1/4-20 Series
* Available with Anti-Vibration Locking Patch
