P. 45
Spring Loaded Pins 45

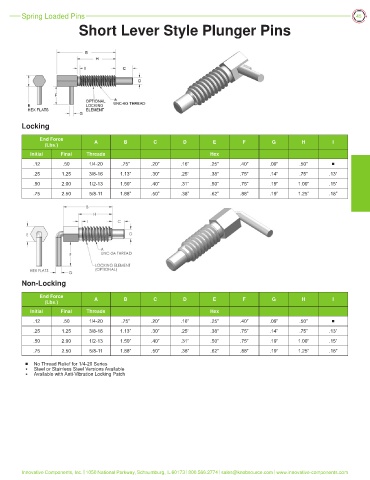

Short Lever Style Plunger Pins
Locking
End Force
(Lbs.) A B C D E F G H I
Initial Final Threads Hex
.12 .50 1/4-20 .75” .20” .16” .25” .40” .09” .50” ■
.25 1.25 3/8-16 1.13” .30” .25” .38” .75” .14” .75” .13”
.50 2.00 1/2-13 1.50” .40” .31” .50” .75” .19” 1.00” .15”
.75 2.50 5/8-11 1.88” .50” .38” .62” .88” .19” 1.25” .18”
Non-Locking
End Force A B C D E F G H I
(Lbs.)
Initial Final Threads Hex
.12 .50 1/4-20 .75” .20” .16” .25” .40” .09” .50” ■
.25 1.25 3/8-16 1.13” .30” .25” .38” .75” .14” .75” .13”
.50 2.00 1/2-13 1.50” .40” .31” .50” .75” .19” 1.00” .15”
.75 2.50 5/8-11 1.88” .50” .38” .62” .88” .19” 1.25” .18”
■ No Thread Relief for 1/4-20 Series
* Steel or Stainless Steel Versions Available
* Available with Anti-Vibration Locking Patch
