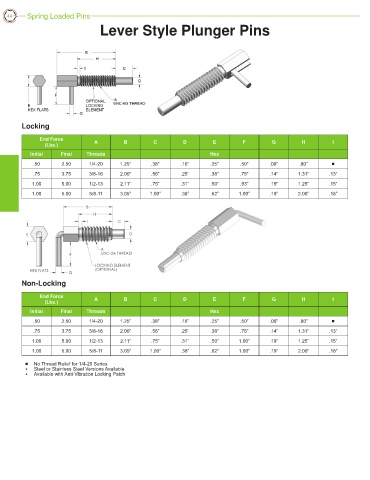

44 Spring Loaded Pins
Lever Style Plunger Pins
Locking
End Force
(Lbs.) A B C D E F G H I
Initial Final Threads Hex
.50 2.50 1/4-20 1.25” .38” .16” .25” .50” .09” .80” ■
.75 3.75 3/8-16 2.00” .56” .25” .38” .75” .14” 1.31” .13”
1.00 5.00 1/2-13 2.11” .75” .31” .50” .93” .19” 1.25” .15”
1.00 5.00 5/8-11 3.05” 1.00” .38” .62” 1.00” .19” 2.00” .18”
Non-Locking
End Force A B C D E F G H I
(Lbs.)
Initial Final Threads Hex
.50 2.50 1/4-20 1.25” .38” .16” .25” .50” .09” .80” ■
.75 3.75 3/8-16 2.00” .56” .25” .38” .75” .14” 1.31” .13”
1.00 5.00 1/2-13 2.11” .75” .31” .50” 1.00” .19” 1.25” .15”
1.00 5.00 5/8-11 3.05” 1.00” .38” .62” 1.00” .19” 2.00” .18”
■ No Thread Relief for 1/4-20 Series
* Steel or Stainless Steel Versions Available
* Available with Anti-Vibration Locking Patch
