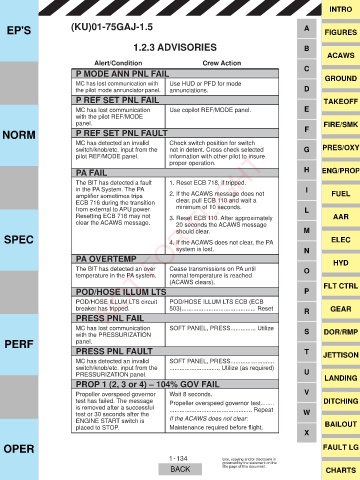

Page 162 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 A FIGURES

1.2.3 ADVISORIES B
ACAWS
Alert/Condition Crew Action C
P MODE ANN PNL FAIL GROUND
MC has lost communication with Use HUD or PFD for mode
the pilot mode annunciator panel. annunciations. D
P REF SET PNL FAIL TAKEOFF
MC has lost communication Use copilot REF/MODE panel. E
with the pilot REF/MODE
panel. FIRE/SMK
NORM P REF SET PNL FAULT F

MC has detected an invalid Check switch position for switch
switch/knob/etc. input from the not in detent. Cross check selected G PRES/OXY
pilot REF/MODE panel. information with other pilot to insure
proper operation.
PA FAIL H ENG/PROP
The BIT has detected a fault 1. Reset ECB 718, if tripped.
in the PA System. The PA I
DPSOL¿HU VRPHWLPHV WULSV 2. If the ACAWS message does not FUEL
ECB 716 during the transition clear, pull ECB 110 and wait a
from external to APU power. minimum of 10 seconds. L
Resetting ECB 718 may not 3. Reset ECB 110. After approximately AAR
clear the ACAWS message. 20 seconds the ACAWS message
should clear. M
SPEC NOT FOR FLIGHT ELEC
4. If the ACAWS does not clear, the PA
system is lost. N
PA OVERTEMP HYD

The BIT has detected an over Cease transmissions on PA until O
temperature in the PA system. normal temperature is reached
(ACAWS clears). FLT CTRL
POD/HOSE ILLUM LTS P

POD/HOSE ILLUM LTS circuit POD/HOSE ILLUM LTS ECB (ECB
breaker has tripped. 503)............................................ Reset R GEAR
PRESS PNL FAIL
MC has lost communication SOFT PANEL, PRESS............... Utilize S DOR/RMP
with the PRESSURIZATION
PERF panel.

PRESS PNL FAULT T JETTISON
MC has detected an invalid SOFT PANEL, PRESS..........................
switch/knob/etc. input from the .............................. Utilize (as required)
PRESSURIZATION panel. U LANDING
PROP 1 (2, 3 or 4) – 104% GOV FAIL

Propeller overspeed governor Wait 8 seconds. V
test has failed. The message Propeller overspeed governor test........ DITCHING
is removed after a successful ................................................. Repeat
test or 30 seconds after the W
ENGINE START switch is If the ACAWS does not clear: BAILOUT
placed to STOP. 0DLQWHQDQFH UHTXLUHG EHIRUH ÀLJKW
X
OPER FAULT LG

1 -134 Use, copying and/or disclosure is
governed by the statement on the
BACK title page of this document. CHARTS
