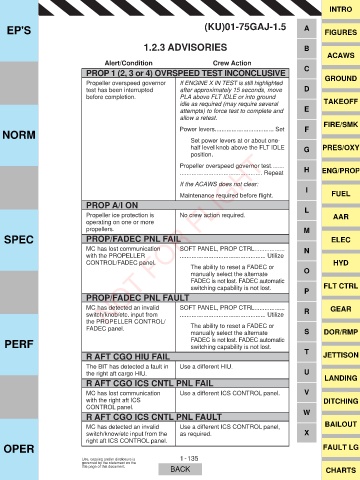

Page 163 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 A FIGURES

1.2.3 ADVISORIES B
ACAWS
Alert/Condition Crew Action
PROP 1 (2, 3 or 4) OVRSPEED TEST INCONCLUSIVE C GROUND
Propeller overspeed governor If ENGINE X IN TEST is still highlighted
test has been interrupted after approximately 15 seconds, move D
before completion. PLA above FLT IDLE or into ground
idle as required (may require several TAKEOFF
attempts) to force test to complete and E
allow a retest. FIRE/SMK
NORM Power levers................................... Set F
Set power levers at or about one-
half level knob above the FLT IDLE G PRES/OXY
NOT FOR FLIGHT
position.
Propeller overspeed governor test........
................................................. Repeat H ENG/PROP
If the ACAWS does not clear:
I
0DLQWHQDQFH UHTXLUHG EHIRUH ÀLJKW FUEL
PROP A/I ON L

Propeller ice protection is No crew action required. AAR
operating on one or more
propellers. M
SPEC PROP/FADEC PNL FAIL ELEC

MC has lost communication SOFT PANEL, PROP CTRL.................. N
with the PROPELLER ................................................... Utilize
CONTROL/FADEC panel. HYD
The ability to reset a FADEC or O
manually select the alternate
FADEC is not lost. FADEC automatic
switching capability is not lost. P FLT CTRL
PROP/FADEC PNL FAULT

MC has detected an invalid SOFT PANEL, PROP CTRL.................. R GEAR
switch/knob/etc. input from ................................................... Utilize
the PROPELLER CONTROL/
FADEC panel. The ability to reset a FADEC or
manually select the alternate S DOR/RMP
PERF FADEC is not lost. FADEC automatic
switching capability is not lost.
R AFT CGO HIU FAIL T JETTISON
The BIT has detected a fault in Use a different HIU.
the right aft cargo HIU. U LANDING
R AFT CGO ICS CNTL PNL FAIL
MC has lost communication Use a different ICS CONTROL panel. V
with the right aft ICS DITCHING
CONTROL panel. W
R AFT CGO ICS CNTL PNL FAULT
MC has detected an invalid Use a different ICS CONTROL panel, BAILOUT
switch/know/etc input from the as required. X
right aft ICS CONTROL panel.
OPER FAULT LG

Use, copying and/or disclosure is 1 -135
governed by the statement on the
title page of this document. BACK CHARTS
