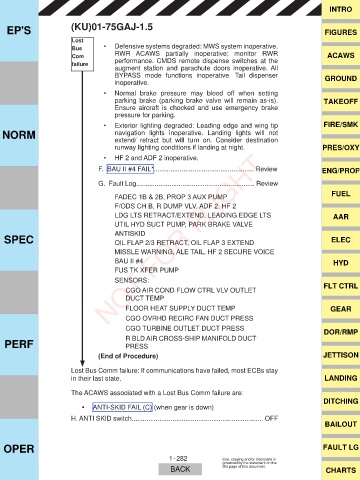

   EP'S                  (KU)01-75GAJ-1.5                                                                   FIGURES

                         Lost
                         Bus       ‡   Defensive systems degraded: MWS system inoperative.
                         Com           RWR  ACAWS partially inoperative; monitor RWR                         ACAWS
                         failure       performance. CMDS remote dispense switches at the
                                       augment station and parachute doors inoperative. All
                                       BYPASS mode functions inoperative.  Tail dispenser                   GROUND
                                       inoperative.
                                   ‡   Normal brake pressure may bleed off when setting
                                       parking brake (parking brake valve will remain as-is).               TAKEOFF
                                       Ensure aircraft is chocked and use emergency brake
                                       pressure for parking.
                                   ‡   Exterior lighting degraded: Leading edge and wing tip                FIRE/SMK
  NORM                                 navigation lights inoperative. Landing lights will not
                                       extend/ retract but will turn on. Consider destination
                                       runway lighting conditions if landing at night.                      PRES/OXY
                                   ‡   HF 2 and ADF 2 inoperative.
                                  F.  BAU II #4 FAIL*...................................................... Review  ENG/PROP

                                  G.  Fault Log................................................................ Review
                                                                                                               FUEL
                                       )$'(&  %    %  3523   $8; 3803
                                       F/ODS CH B, R DUMP VLV, ADF 2, HF 2
                                       LDG LTS RETRACT/EXTEND, LEADING EDGE LTS                                AAR
                                       UTIL HYD SUCT PUMP, PARK BRAKE VALVE
                                       ANTISKID
  SPEC                              NOT FOR FLIGHT                                                             ELEC
                                       OIL FLAP 2/3 RETRACT, OIL FLAP 3 EXTEND
                                       MISSLE WARNING, ALE TAIL, HF 2 SECURE VOICE
                                       BAU II #4                                                               HYD
                                       FUS TK XFER PUMP
                                       SENSORS:                                                             FLT CTRL
                                           CGO AIR COND FLOW CTRL VLV OUTLET
                                           DUCT TEMP
                                           FLOOR HEAT SUPPLY DUCT TEMP                                        GEAR
                                           CGO OVRHD RECIRC FAN DUCT PRESS
                                           CGO TURBINE OUTLET DUCT PRESS                                    DOR/RMP
  PERF                                     R BLD AIR CROSS-SHIP MANIFOLD DUCT
                                           PRESS
                                  (End of Procedure)                                                        JETTISON

                         Lost Bus Comm failure: If communications have failed, most ECBs stay
                         in their last state.                                                               LANDING

                         The ACAWS associated with a Lost Bus Comm failure are:
                                                                                                            DITCHING
                               ‡  ANTI-SKID FAIL (C) (when gear is down)

                         H. ANTI SKID switch....................................................................... OFF
                                                                                                            BAILOUT


  OPER                                                                                                      FAULT LG
