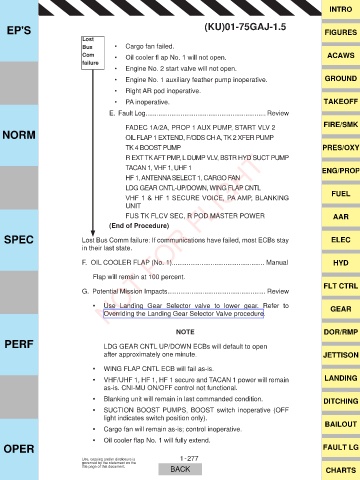

INTRO


   EP'S                                                              (KU)01-75GAJ-1.5                       FIGURES

                            Lost
                            Bus        ‡   Cargo fan failed.
                            Com        ‡   2LO FRROHU À DS 1R    ZLOO QRW RSHQ                               ACAWS
                            failure
                                       ‡   Engine No. 2 start valve will not open.

                                       ‡   Engine No. 1 auxiliary feather pump inoperative.                 GROUND
                                       ‡   Right AR pod inoperative.
                                       ‡   PA inoperative.                                                  TAKEOFF
                                     E.  Fault Log................................................................. Review

                                                                                                            FIRE/SMK
                                           FADEC 1A/2A, PROP 1 AUX PUMP, START VLV 2
  NORM                                     OIL FLAP 1 EXTEND, F/ODS CH A, TK 2 XFER PUMP

                                           TK 4 BOOST PUMP                                                  PRES/OXY
                                    NOT FOR FLIGHT
                                           R EXT TK AFT PMP, L DUMP VLV, BSTR HYD SUCT PUMP
                                           TACAN 1, VHF 1, UHF 1                                           ENG/PROP
                                           HF 1, ANTENNA SELECT 1, CARGO FAN
                                           LDG GEAR CNTL-UP/DOWN, WING FLAP CNTL                               FUEL
                                           9+)     +)   6(&85( 92,&(  3$ $03  %/$1.,1*
                                           UNIT
                                           FUS TK FLCV SEC, R POD MASTER POWER                                 AAR
                                     (End of Procedure)
  SPEC                      Lost Bus Comm failure: If communications have failed, most ECBs stay               ELEC
                            in their last state.

                            F.  OIL COOLER FLAP (No. 1).................................................. Manual  HYD

                                Flap will remain at 100 percent.
                                                                                                            FLT CTRL
                            G.  Potential Mission Impacts..................................................... Review

                                  ‡  Use Landing Gear Selector valve to lower gear. Refer to                  GEAR
                                   Overriding the Landing Gear Selector Valve procedure.

                                                           NOTE                                             DOR/RMP
  PERF                             LDG GEAR CNTL UP/DOWN ECBs will default to open

                                   after approximately one minute.                                          JETTISON

                                  ‡  WING FLAP CNTL ECB will fail as-is.

                                  ‡  VHF/UHF 1, HF 1, HF 1 secure and TACAN 1 power will remain             LANDING
                                   as-is. CNI-MU ON/OFF control not functional.

                                  ‡  Blanking unit will remain in last commanded condition.                 DITCHING
                                  ‡  SUCTION BOOST PUMPS, BOOST switch inoperative (OFF
                                   light indicates switch position only).
                                                                                                            BAILOUT
                                  ‡  Cargo fan will remain as-is; control inoperative.
                                  ‡  2LO FRROHU ÀDS 1R    ZLOO IXOO\ H[WHQG
  OPER                                                                                                      FAULT LG
